- History:
- The Hungarian method
is a
combinatorial optimization algorithm
which solves the
assignment problem in polynomial time
- Later it was discovered that it was
a primal-dual Simplex method.
- It was developed and published by Harold Kuhn in 1955, who gave the name "Hungarian method" because the algorithm was largely based on the earlier works of two Hungarian mathematicians: Denes Konig and Jeno Egervary.
- The Hungarian method
is a
combinatorial optimization algorithm
which solves the
assignment problem in polynomial time
- Recall the Goal:

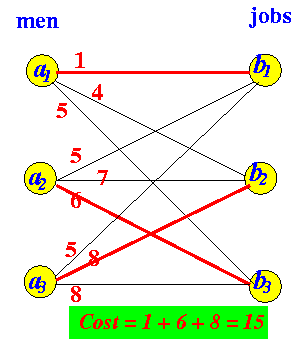

- Find a minimum cost
complete matching
in a weighted bi-partite graph

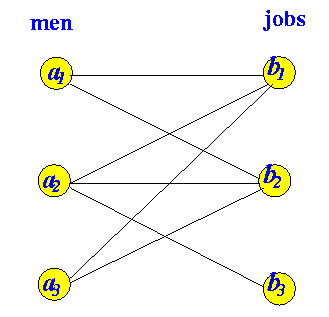

Example weighted bi-partite graph:
- Find a minimum cost
complete matching
in a weighted bi-partite graph
- Pseudo code:
Construct a subgraph graph G consisting of the "best cost edges"; // We will discuss what is a "best cost edge" later Find a maximal matching M in subgraph G repeat until M is a complete matching { Add the "next best cost edges" to G; // Notice the quotes: it's more complex that just // looking at the cost of an edge Find a maximal matching M in (modified) subgraph G; }
- Caveat:
- The best cost edges may not be the least cost edges

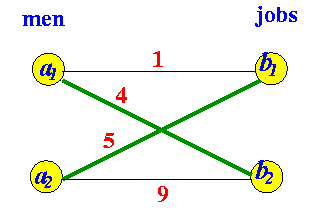

- Consider the following simple example:
The least cost edge in the graph is (a1, b1):
However, the minimum cost solution does not contain the edge (a1, b1):
Reason:
- When we match
vertex a1
with vertex b1,
we are also
forcing:
- vertex a2
to be matched up
with vertex b2
!!!!
- The cost of this matchup more than nullify the minimum cost achieved by matching vertex a1 with vertex b1
- vertex a2
to be matched up
with vertex b2
!!!!
- When we match
vertex a1
with vertex b1,
we are also
forcing:
- Fact:
- When a vertex bj
is matched with some
vertex ai,
it will:
- Remove the opportunity
to match
vertex bj
with some
other vertex ak
- This lost opportunity carries a cost !!!
- Remove the opportunity
to match
vertex bj
with some
other vertex ak
- When a vertex bj
is matched with some
vertex ai,
it will:
- Example:

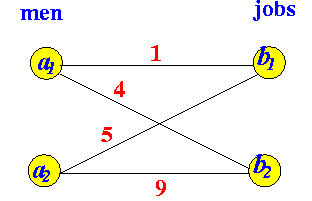

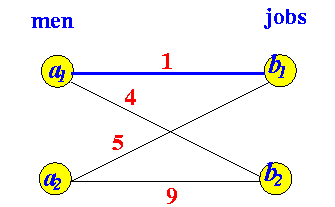

Cost matrix: | b1 b2 ----+---------- a1 | 1 4 a2 | 5 9
- The minimum cost incurred to
match a1 = 1
(by matching a1 to
b1)
The minimum cost incurred to match a2 = 5 (by matching a2 to b1)
Compute the additional incurred cost when using non-optimal edged by subtracting the minimum cost from the other edges that is incident to that same node:
Subtract min cost: Result:
The 0-weight edges are the best edges to match a1 and a2 when nothing else matters
However, we know that something else does matter:
- a1 and a2 cannot be matched to the same vertex b1

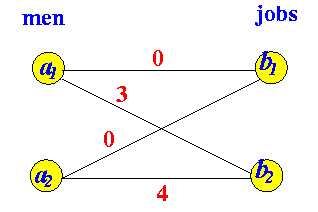

- Consider the normalized cost graph:
How to read the cost 3 and 4:
- It will cost 3 extra $
(or $3 more than best edge) to
match
a1
with b2
- It will cost 4 extra $ (or $4 more than best edge) to match a2 with b2
Now you can tell exactly what you need to do:
- It is cheaper to force a1 to match up with b2 !!!
Therefore:
- The edge (a1,b2) is also one of the best cost edges !!!
- It will cost 3 extra $
(or $3 more than best edge) to
match
a1
with b2

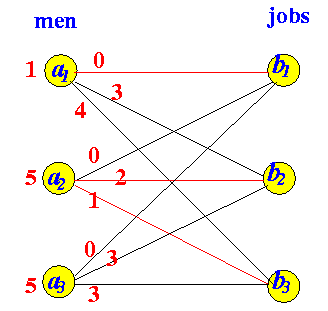

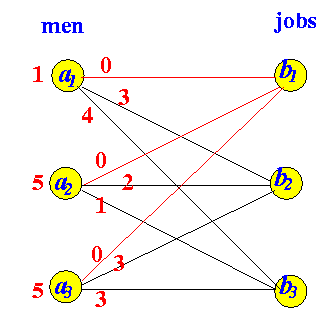

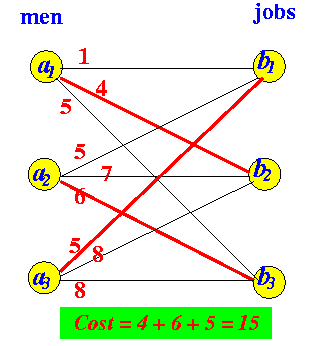

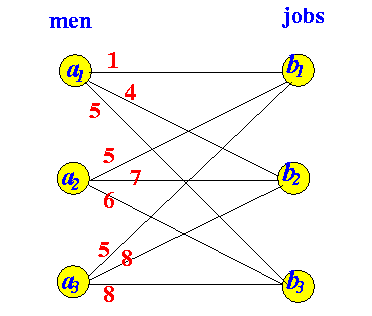

- Example assignment problem:

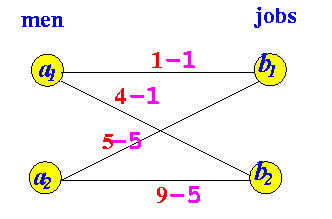

- The Hungarian algorithm: initial step
- Initial step:
- For each vertex ∈ X (men):
- find the minimal cost edge
and
- subtract its weight
from
all weights connected with that vertex.
You will get at least one 0-weight edges for each node.

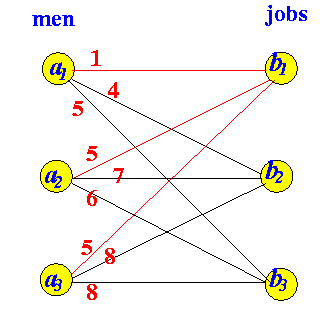

Example:
Min. weight edge of each node ∈ X After subtracting cost from other edges
- find the minimal cost edge
and
- For each vertex ∈ Y (jobs):
- find the minimal cost edge
and
- subtract its weight
from
all weights connected with that vertex.
You may get more 0-weight edges (and you not get any more)
Example:
Min. weight edge of each node ∈ X After subtracting cost from other edges
- find the minimal cost edge
and
- For each vertex ∈ X (men):

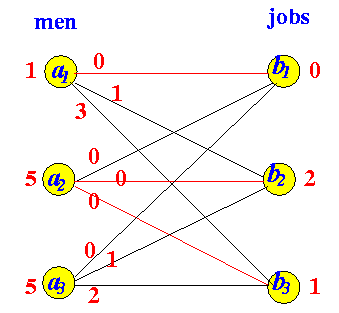

- Consider the subgraph consisting only of the
0-weight edges
after step 0:
Subgraph Original graph
Note:
- These edges will
provide the lowest possible cost
if we can
find a maximum matching
(involving all element in set X (all men)
- These edges will
provide the lowest possible cost
if we can
find a maximum matching
(involving all element in set X (all men)

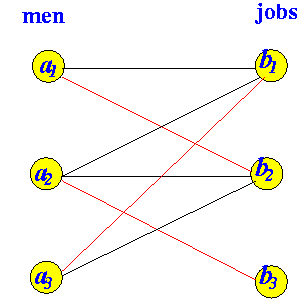

- Find a maximal matching in the
subgraph consisting only of the
0-weight edges

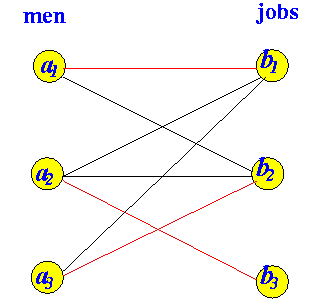

Example:
Subgraph with 0-weight edges A maximal matching
Note:

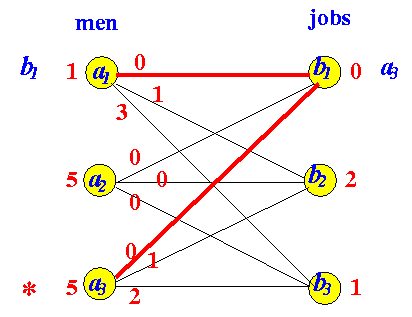

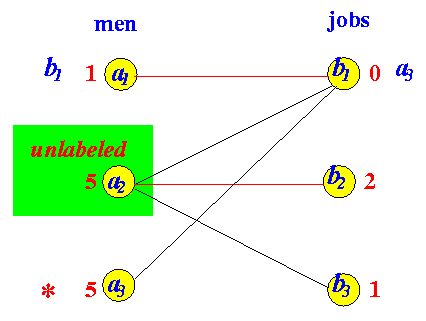

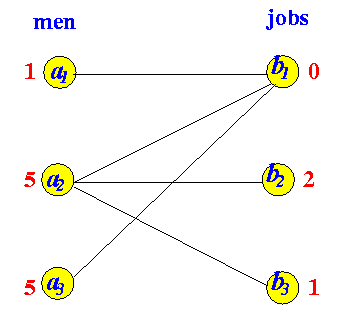

- The graph includes the labels made by the last step of the max. flow algorithm
- If matching = maximum
(all vertices ∈ X, then we are
done
But in this case, we are not done (yet) and enter the iterative step
Iterative step:
- Add
the "next least cost edge(s)"
to the subgraph
(it's more complex
that just finding the smallest cost,
because you have to consider the effect of
other nodes) and
- Find a new maximal mathcing
- Add
the "next least cost edge(s)"
to the subgraph
(it's more complex
that just finding the smallest cost,
because you have to consider the effect of
other nodes) and
- Initial step:
- Iterative step:
- Iterative step
(only doen when the matching is not maximum (complete)):
- Add the next least cost edge(s):

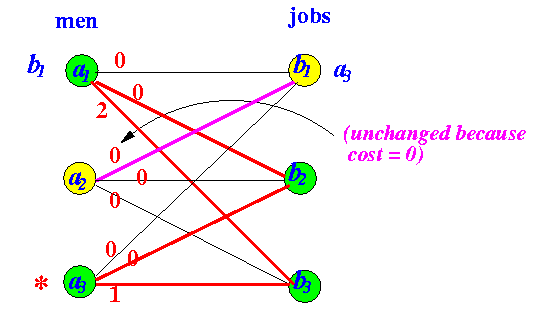

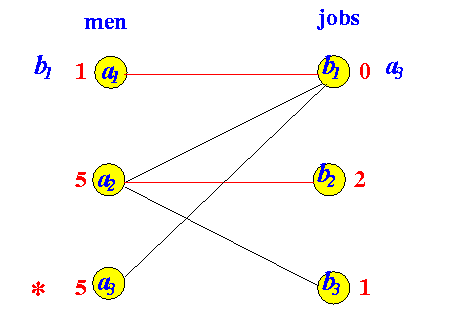

- Look
in the original bi-partite graph

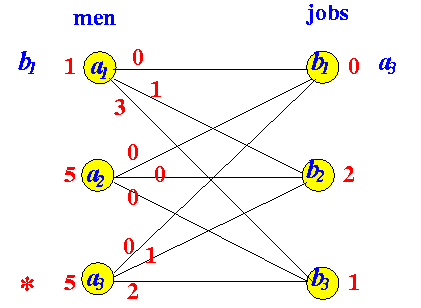

(with the label of the
maximum flow algorithm added):

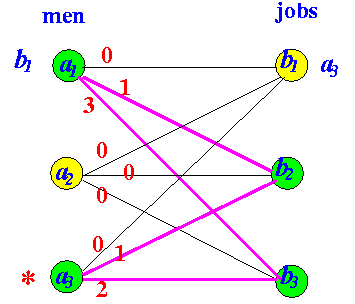

- Find
all edges (with cost > 0)
going from a
labeled vertex ∈ X (men)
to an
unlabeled vertex ∈ Y (jobs)
Edges: + = a labeled node + b1 b2 b3 ---+------------ + a1 | 0 1 3 a2 | 0 0 0 + a3 | 0 1 2Find the minimum cost δ:
- δ = 1
- For each edge
with cost > 0 such that:
labeled vertex ∈ X (men)
→
unlabeled vertex ∈ Y (jobs):
- subtract δ from the cost of the edge
For each edge with cost > 0 joining an unlabeled vertex ∈ X (men) → labeled vertex ∈ Y (jobs):
- add δ from the cost of the edge
(This addition and subtraction is actually a pivoting operation in the Simplex Algorithm !!)
Example:
Before any operations After the subtract step After the addition step + b1 b2 b3 ---+------------ + a1 | 0 1 3 a2 | 0 0 0 + a3 | 0 1 2+ b1 b2 b3 ---+------------ + a1 | 0 0 2 a2 | 0 0 0 + a3 | 0 0 1+ b1 b2 b3 ---+------------ + a1 | 0 0 2 a2 | 0 0 0 + a3 | 0 0 1Result:
- Add the new
0-cost edges
and repeat
the matching step:
Result:
Max. matching 1 Max. matching 2
Corresponing answer Corresponing answer
- Look
in the original bi-partite graph
(with the label of the
maximum flow algorithm added):
- Add the next least cost edge(s):
- Iterative step
(only doen when the matching is not maximum (complete)):
- Final note:
- There were 2 optimum solution
possible because in the last step
of the algorithm, we have added
2 new edges of
the same cost to the subgraph.
- Each edge gave rise to
an maximum matching
But, the cost of the optimum solution is equal
- There were 2 optimum solution
possible because in the last step
of the algorithm, we have added
2 new edges of
the same cost to the subgraph.
- Reason to do the first subtract step:
- The first subtract step:
Before subtraction After subtraction
- Observe that:
- The 0-weight edges are the minimum cost edges to connect a source node to a destination node
- The first subtract step:
- Reason to do the second subtract step:
- The second subtract step:
Before subtraction After subtraction
- Observe that:
- Before the subtraction
there is no "minimum" cost path
from any source to
nodes b2 and
b3
Therefore:
- There is no way that nodes b2 and b3 will be assigned (using only 0-weight edges) !!!
- After the subtraction there are two new 0-weight edges that are the minimum cost edges to connect to nodes b2 and b3 !!!!
- Before the subtraction
there is no "minimum" cost path
from any source to
nodes b2 and
b3
- The second subtract step:
- Why consider
adding only
edges (with cost > 0)
going from a
labeled vertex ∈ X (men)
to an
unlabeled vertex ∈ Y (jobs)
- Consider the labeling
of the original graph
when we decide to add new (minimum cost)
edges
(to get a complete matching):
Matching found before including new edges Labling in the original graph
- There are 4 types of
edges:
- unlabeled x → unlabeled y
- unlabeled x
→ labeled y
- labeled x → unlabeled y
- labeled x → labeled y
Remember: we add edges because we cannot find a maximum matching with the current set of minimum cost edges
I.e.:
- add edges to allow the unmatched nodes ∈ X to be matched with some node ∈ Y
- Fact:
- An unlabeled node x
is a node that
has been matched
with some node ∈ Y
Example:
(This is how the labeling algorithm works.)
Therefore:
- There is no need
to include edges of the type:
- unlabeled x → unlabeled y
- unlabeled x → labeled y
because the vertex x has already been matched !!!
- An unlabeled node x
is a node that
has been matched
with some node ∈ Y
- Fact:
- An edge
connecting a labeled node x
to a labeled node y
is an
edge in the current partial graph
Example:
Current partial graph Edges connecting labeled vertices in X and Y
(Again, this is how the labeling algorithm works.)
Therefore:
- There is no need
to include edges of the type:
- labeled x → labeled y
- unlabeled x → labeled y
because these edges are already included !!!
- An edge
connecting a labeled node x
to a labeled node y
is an
edge in the current partial graph
- The only remaining type of edges to consider for inclusion is: labeled x → unlabeled y
- Consider the labeling
of the original graph
when we decide to add new (minimum cost)
edges
(to get a complete matching):
- Why do we subtract and
add in a particular way ?
- That is the
elementary row operation
performed in the Simplex method
- Sometimes you have to add
the pivot row
to another row
Sometimes you have to subtract the pivot row from another row
- Without knowing details of the Dual Simplex Algorithm, it is not possible to explain the reason completely
- That is the
elementary row operation
performed in the Simplex method
- Problem description:
- 4 applicants
a1, a2, a3, and
a4
apply for 4 jobs
b1, b2, b3, and
b4
- The cost matrix is:
b1 b2 b3 b4 ----+------------------ a1 | 6 12 15 15 a2 | 4 8 9 11 a3 | 10 5 7 8 a4 12 10 6 9
- Find the optimum (least cost) assignment of applicants to jobs.
- 4 applicants
a1, a2, a3, and
a4
apply for 4 jobs
b1, b2, b3, and
b4
- Solution:
- Initialization:
- Subtract the
least cost of
each vertex ∈ X from
all weights connected to that vertex
This is the same as:
- Subtract the smallest value in each row from all other values in that row
Result:
Before subtraction: b1 b2 b3 b4 ----+------------------ a1 | 6 12 15 15 a2 | 4 8 9 11 a3 | 10 5 7 8 a4 | 12 10 6 9After subtraction: b1 b2 b3 b4 ----+------------------ a1 | 0 6 9 9 a2 | 0 4 5 7 a3 | 5 0 2 3 a4 | 6 4 0 3
- Subtract the
least cost of
each vertex ∈ Y from
all weights connected to that vertex
This is the same as:
- Subtract the smallest value in each column from all other values in that row
Result:
Before subtraction: b1 b2 b3 b4 ----+------------------ a1 | 0 6 9 9 a2 | 0 4 5 7 a3 | 5 0 2 3 a4 | 6 4 0 3After subtraction: b1 b2 b3 b4 ----+------------------ a1 | 0 6 9 6 a2 | 0 4 5 4 a3 | 5 0 2 0 a4 | 6 4 0 0
- Subtract the
least cost of
each vertex ∈ X from
all weights connected to that vertex

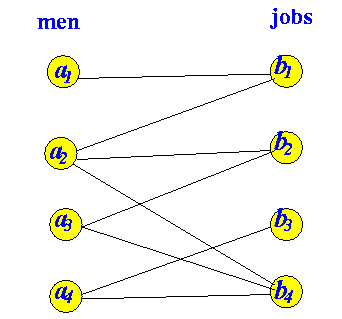

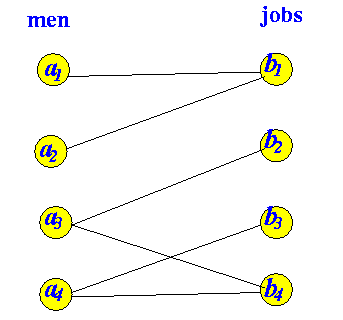

- Initial matching:

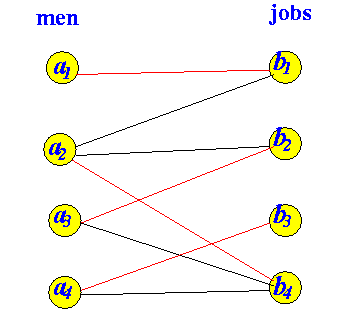

- Subgraph with 0-weight edges:
- Maximal matching:
- Subgraph with 0-weight edges:
- Iteration 1:

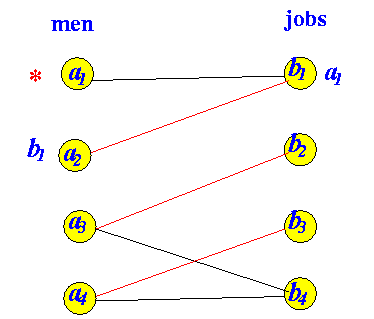

- The incomplete maximal matching:
Edges labeled xi → unlabeled yj: (marked red) + b1 b2 b3 b4 ----+------------------ + a1 | 0 6 9 6 + a2 | 0 4 5 4 a3 | 5 0 2 0 a4 | 6 4 0 0 δ = 4
- Recalculate edge costs to find new 0-weight edges:
Subtract δ from the cost of edges labeled xi → unlabeled yj:
Result: - - - b1 b2 b3 b4 ----+------------------ + a1 | 0 2 5 2 + a2 | 0 0 1 0 a3 | 5 0 2 0 a4 | 6 4 0 0Add δ to the cost of edges unlabeled xi → labeled vertex yj (only when cost of edge > 0)
Result: - - - b1 b2 b3 b4 ----+------------------ + a1 | 0 2 5 2 + a2 | 0 0 1 0 a3 | 9 0 2 0 a4 | 10 4 0 0
- New subgraph with
additional
0-weight edges:
- Maximal matching:
Minimum cost assignment: b1 b2 b3 b4 ----+------------------ a1 | 6 12 15 15 a2 | 4 8 9 11 a3 | 10 5 7 8 a4 | 12 10 6 9 Cost = 6 + 5 + 6 + 11 = 28
- The incomplete maximal matching:
- Initialization:
