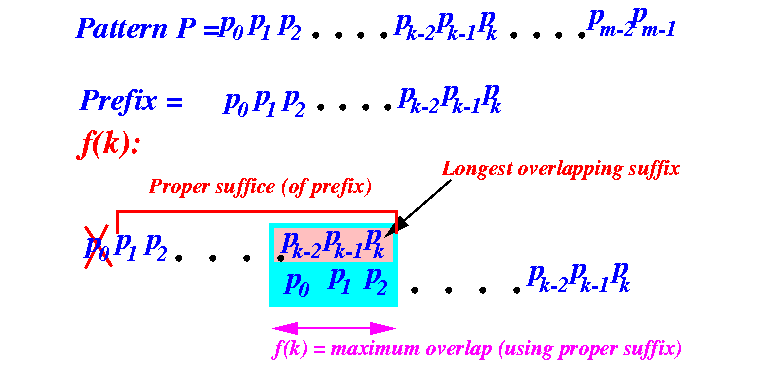

- f(k):
f(k) = MaxOverlap ( "p0 p1 ... pk" ) where: "p0 p1 ... pk" = the prefix of length k+1 of pattern PGraphically:
- Naive way to find
f(k):
Given P = "p0 p1 ... pm-1" Given k = 1, 2, ..., m-1 (k = 0 ==> f(0) = 0) 1. Extract the sub-pattern: "p0 p1 ... pk" 2. Find the first (= largest) overlap: Try: (p0) p1 p2 ... pk-1 p0 p1 ... pk-1 pk If (no match) Try: (p0) p1 p2 ... pk-1 p0 p1 ... pk-1 pk And so on... The first overlap is the longest !
- The values f(k) are
computed easily using
existing prefix overlap information:
- f(0) = 0 (f(0) is always 0)
- f(1) is computing using (already computed) value f(0)
- f(2) is computing using (already computed) value f(0), f(1)
- f(3) is computing using (already computed) value f(0), f(1), f(2)
- And so on.
- According to the
definition of
f(k):
- Suppose that
we know
that:
f(k−1) = x
In other words: the longest overlapping suffix and prefix in "p0 p1 ... pk-1" has x characters:
f(k-1) = x characters <-----------------------> p1 p2 p3 ... pk-x-2 pk-x-3 pk-x-4 .... pk-1 ^ ^ ^ ^ | | | equal | v v v v p0 p1 p2 .... px-1 px ... pk-1$64,000 question:
- Can we use the fact that f(k−1) = x to compute f(k) ?

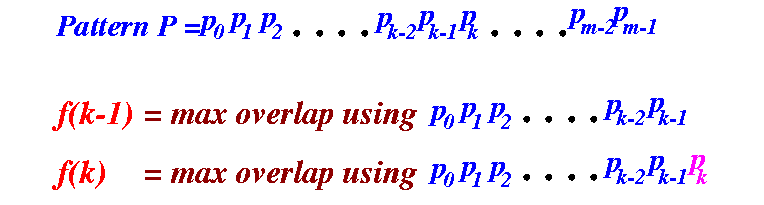

Yes, because f(k) is computed using a similar prefix as f(k−1):
prefix used to compute f(k-1) +--------------------------------+ | | p0 p1 p2 .... px-1 ... pk-1 pk | | +------------------------------------+ prefix used to compute f(k)We will next learn how to exploit the similarity to compute f(k)
- Fact:
- f(k) ≤ f(k−1) + 1
Proof: by contradiction

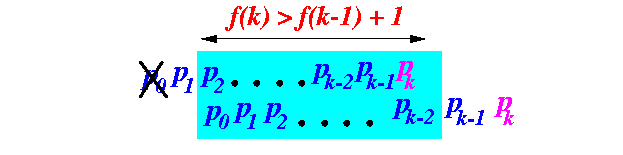

- Suppose
f(k) >
f(k−1) + 1
In other word, the maximum overlap of "p0 p1 p2 .... pk-1 pk" is as follows:

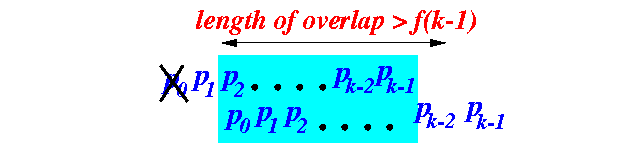

- In that case,
if we
remove the
character
pk from
the prefix, we will have:
and we would have found an overlap using the prefix "p0 p1 p2 .... pk-1"
- f(k−1) = the maximum overlap using prefix "p0 p1 p2 .... pk-1"
Therefore: the length of this overlap can never be greater than f(k−1) !!!
- Contradiction !!!
- Computation trick #1:
- Let use denote: f(k−1) = x
(Note: f(k−1) is equal to some value. The above assumption simply gave a more convenient notation for this value).
If px == pk, then:
f(k) = x+1 (i.e., the maximum overlap of the prefix p0 p1 p2 .... pk-1 pk has x+1 characters
Proof:
- Because
of the given fact that:
px == pk,
we know that the
prefix
"p0 p1 p2 .... pk-1 pk"
has
x+1 matching characters:
These x+1 characters match IF pk == px! <----------------------------> p1 p2 p3 ... pk-x-2 pk-x-3 pk-x-4 .... pk-1 pk ^ ^ ^ ^ ^ | | | equal | |equal v v v v v p0 p1 p2 .... px-1 px ... pk-1 pk | | +--------------------------+ These characters matches because f(k-1) = x
- Let use denote: f(k−1) = x
- Example 1:
k = 0123456 Pattern = aaabaaa
f(0) = 0 (f(0) is always equal to 0) (x = 0)
k=1 | v f(1): (a)a ===> f(1) = 0+1 = 1 (x = 1) aa ^ | x=0
k=2 | v f(2): (a)aa ===> f(2) = 1+1 = 2 (x = 2) aaa ^ | x=1 - Example 2:
k = 0123456 Pattern = aaabaaa
f(3) = 0 because: (a)aab aaab
k=4 | v f(4): (a)aaba ===> f(4) = 0+1 = 1 (x = 1) aaaba ^ | x=0
k=5 | v f(5): (a)aabaa ===> f(4) = 1+1 = 2 aaabaa ^ | x=1
- Before we learn the
second (and final) computation trick,
I want to use an
example to
illustrate the trick.
(This trick is a bit tricky :))
- Example:
- Consider the prefix
ababyabab
where f(8) = 4:
012345678 prefix = ababyabab f(8) = 4 because: ababyabab ababyabab <--> 4 characters overlap
- We want to
compute
f(9)
using f(8)
,
but now the next character
does not match:
0123456789 prefix = ababyababa ababyababa ababyababa Conclusion: *** We CANNOT use f(8) to compute f(9) ***$64,000 question:
- What should we try next to find the maximum overlap for the prefix "ababyababa"
Answer:
- To find the maximum overlap, we must slide the prefix down and look for matching letters !!!
- Now, let us
use only the
matching prefix information:
ababyababa ababyababa
Look only at these characters: ?????abab? abab??????
- We can know for sure
that the overlap
cannot
be found starting at
these positions:
?????abab? abab??????
- The first possible
way that overlap
can be found is starting here:
?????abab? abab??????
- In other words:
we can
compute
f(9)
using
f(3)
:
- f(3) = 2:
0123 prefix = abab abab abab f(3) = 2(Notice that: 3 = 4−1 and f(8) = 4)
- f(3) = 2:
- Consider the prefix
ababyabab
where f(8) = 4:
- How does this work ???
- It works exactly as when we try to compute f(9) using f(8)
Worked out further:
- Consider the prefix
abab
where f(3) = 2:
0123 prefix = abab f(3) = 2 because: abab abab -- 2 characters overlap
- We want to
compute
f(9)
using f(3)
:
0123456789 prefix = ababyababa ababyababa ababyababa ^ | compare the character at position 2 (f(3) = 2) Note: The prefix abab is hightlighted in yellowBecause the characters are equal, we have found the maximum overlap:
f(9) = f(3) + 1 = 2 + 1 = 3 !!!
- Computation trick #2:
- Let: f(k−1) = x
(Note: f(k−1) is equal to some value. The above assumption simply gave a more convenient notation for this value).
If px ≠ pk, then:
- The next prefix that can
be used to
compute f(k) is:
p0 p1 .... px-1
In pseudo code:
i = k-1; // Try to use f(k-1) to compute f(k) x = f(i); // x = character position to match against pk if ( P[k] == P[x] ) then f(k) = f(x−1) + 1 else Use: p0 p1 .... px-1 to compute f(k) What that means in terms of program statements: i = x-1; // Try to use f(x-1) to compute f(k) x = f(i); // x = character position to match against pk - The next prefix that can
be used to
compute f(k) is:
- Let: f(k−1) = x
- Note:
- We must repeat trick #2
as long as i ≥ 0
In other words:
- use a while loop instead of an if statement !
- We must repeat trick #2
as long as i ≥ 0
- Pseudo code:
public static int[] KMP_failure_function( P ) { int k, i, x, m; int f[] = new int[P.length()]; // f[] stores the function values m = P.length(); f[0] = 0; // f[0] is always 0... for ( k = 1; k < m; k++ ) { // Compute f(k) and store in f[k] i = k-1; // Try use f(k-1) to compute f(k) x = f[i]; // Character position to match agains P[k] if ( P[k] == P[x] ) // Note: make sure x is valid { f[k] = f[i] + 1; continue; // Compute next f(k) value } else { i = x-1; // Try next prefix (and next f(i)) to compute f(k) x = f[i]; // Character position to match agains P[k] } if ( P[k] == P[x] ) // Note: make sure x is valid { f[k] = f[i] + 1; continue; // Compute next f(k) value } else { i = x-1; // Try next prefix (and next f(i)) to compute f(k) x = f[i]; // Character position to match agains P[k] } .... (obviously we will make this into a loop !!!) } }
- Java code:
public static int[] KMP_failure_function(String P) { int k, i, x, m; int f[] = new int[P.length()]; m = P.length(); f[0] = 0; // f(0) is always 0 for ( k = 1; k < m; k++ ) { // Compute f[k] i = k-1; // First try to use f(k-1) to compute f(k) x = f[i]; while ( P.charAt(x) != P.charAt(k) ) { i = x-1; // Try the next candidate f(.) to compute f(k) if ( i < 0 ) // Make sure x is valid break; // STOP the search !!! x = f[i]; } if ( i < 0 ) f[k] = 0; // No overlap at all: max overlap = 0 characters else f[k] = f[i] + 1; // We can compute f(k) using f(i) } return(f); }
- Example Program:
(Demo above code)
- Prog file: click here
How to run the program:
- Right click on link(s) and
save in a scratch directory
- To compile: javac ComputeF.java
- To run: java ComputeF
Example:
>>> java ComputeF P = ababyababa ----------------------------------------------- Prefix = ab --- Computing f(1): =================================== Try using: f(0) = 0 ===================================== Matching: i = 1, j = 0 01 ab ab 01 ^ | No overlap possible... --> f[1] = 0 ----------------------------------------------- ....... ----------------------------------------------- Prefix = ababyababa --- Computing f(9): =================================== Try using: f(8) = 4 ===================================== Matching: i = 9, j = 4 0123456789 ababyababa ababyababa 0123456789 ^ | =================================== Try using: f(3) = 2 ===================================== Matching: i = 9, j = 2 0123456789 ababyababa ababyababa 0123456789 ^ | Overlap found ... --> f[9] = 3
