Prelude to String Matching: string traversal technqiue

---

• Preliminaries
  • Before we start learn fast string matching algorithm, let use be clear about some notations

    ---

  • Input text and the pattern:

    T = input text P = pattern (that we need to find in the text T) T[i] = the i-th character of T P[j] = the j-th characetr of P T[i] == P[j] means: check if the i-th character of T and the j-th characetr of P are equal.

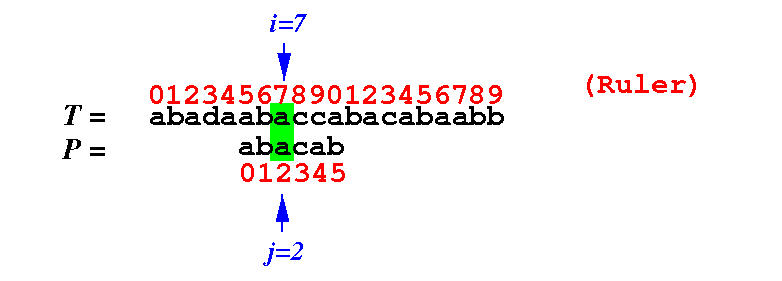

  • You will often see pictures that look like this:

    Example: (The top line is a ruler that help you identify the character at a certain index quickly The above picture depicts the following state: We are checking on whether: T[7] == P[2] Notice that in order to compare T[7] == P[2], we must line up T[5] with P[0]:          T[0] T[1] T[2] T[3] T[4] T[5] T[6] T[7] .... P[0] P[1] P[2] ....

  ---

  ---

  ---

  ---

  ---

  ---

• Action taken when we find a match
  • The action that is taken when the characters match is always:

    If we have matched the last character, then pattern P has been found !!! Otherwsie, check if the next pair of characters match.

    ---

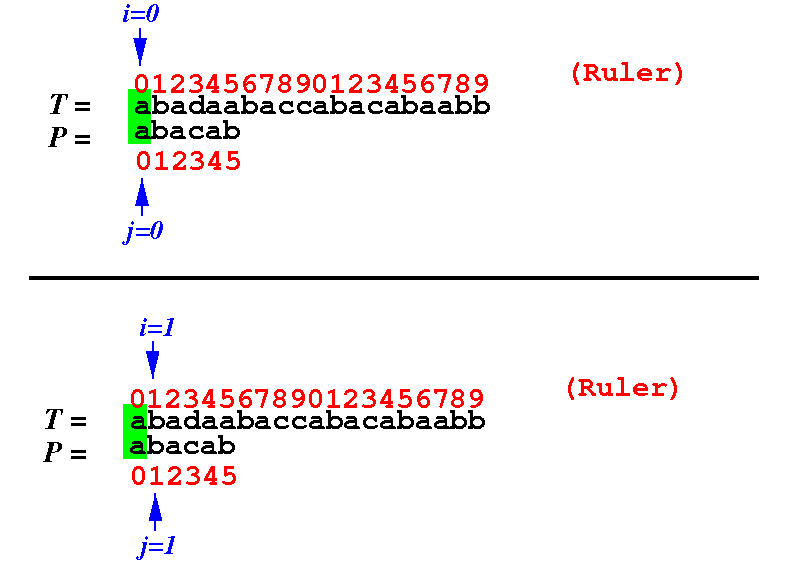

  • Example 1: we matched T[0] == P[0], try next pair of characters: T[1] and P[1]

    ---

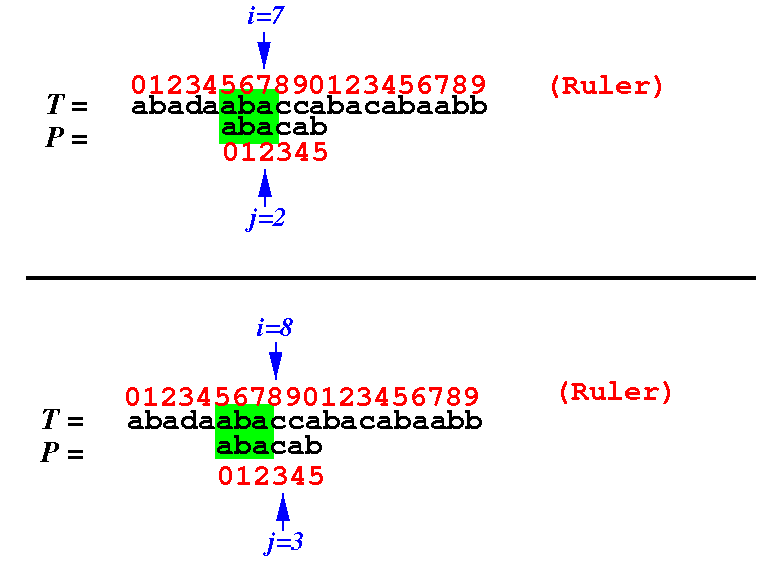

  • Example 2: we matched T[7] == P[2], try next pair of characters: T[8] and P[3]

    ---

    ---

    ---

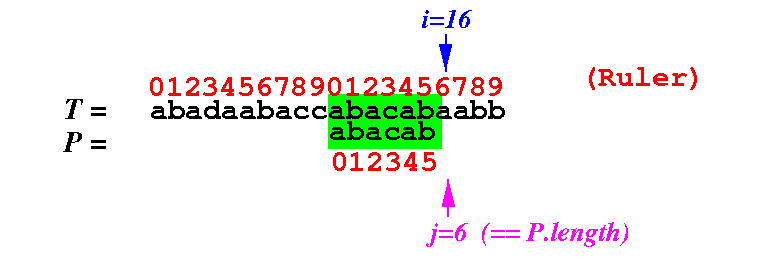

  • Example: a situation where we matched all characters in the parttern P successfully

    ---

    ---

    Observations: (what we learned from the above examples)

    The following test is used to determined if all characters in pattern P has been matched: j == P.length (P[j] is the character in P that you try to match) The following statements is used to move to the next pair of characters in the pattern and the input string: i++; // use the next character in input string T j++; // use the next character in pattern P

    ---

    ---

  • I can now sketch a portion of the KMP algorithm:

    while ( not all characters matched ) { if ( T[i] == P[j] ) { /* -------------------------------------- Try to match NEXT pair of characters -------------------------------------- */ i++; j++; if ( j == P.length ) { P has been found ! (You can quit, or keep going to find another match) } } .... }

  ---

  ---

  ---

  ---

  ---

  ---

• String traversal help variable: i₀
  • When studying string matching algorithm, it will help to make the algorithm clearer if we introduce the following variable:

    i0 = the character position in T that is lined up with the first character P[0] in P

    ---

  • Example:

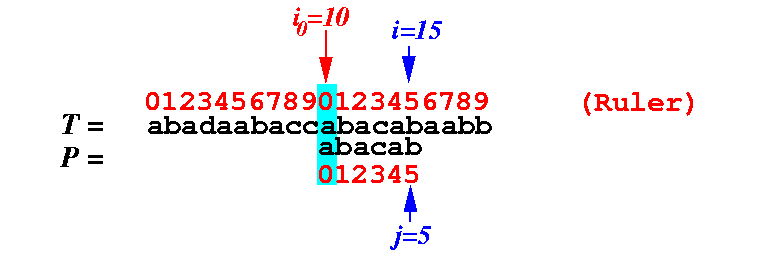

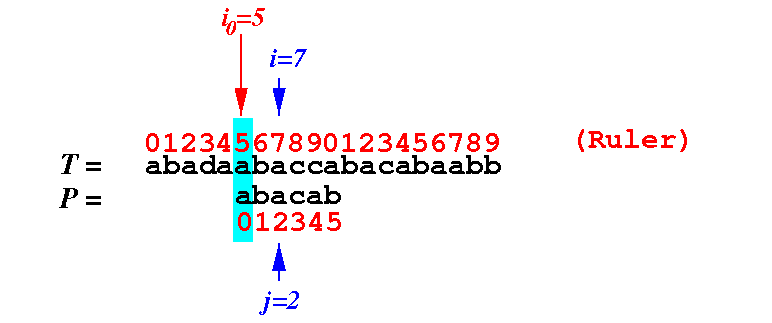

    In the following state: we have i0 = 5 In the following state: we have i0 = 10

  ---

  ---

• Text book algorithms
  • If you read the string matching algorithm in many text books, the update procedure for the i and j variables in the mismatch case is a very complex expression

    The reason is mainly the fact that they try to use i and j only I.e., they do not use the i0 variable that I introduced above.

    ---

  • In fact, the i₀ variable is not necessary because:

    i0 = i - j

    Example:

    ---

    ---

  • However:

    when you use i − j in an expression, it's hard to tell what the purpose of the statement

    Example:

    i = i - j + 1; j = 0;

    $64,000 question:

    What did the above statements accomplish ??? (Answer is given below)

  ---

  ---

  ---

  ---

  ---

  ---

• What to do when characters do not match...
  • Fact:

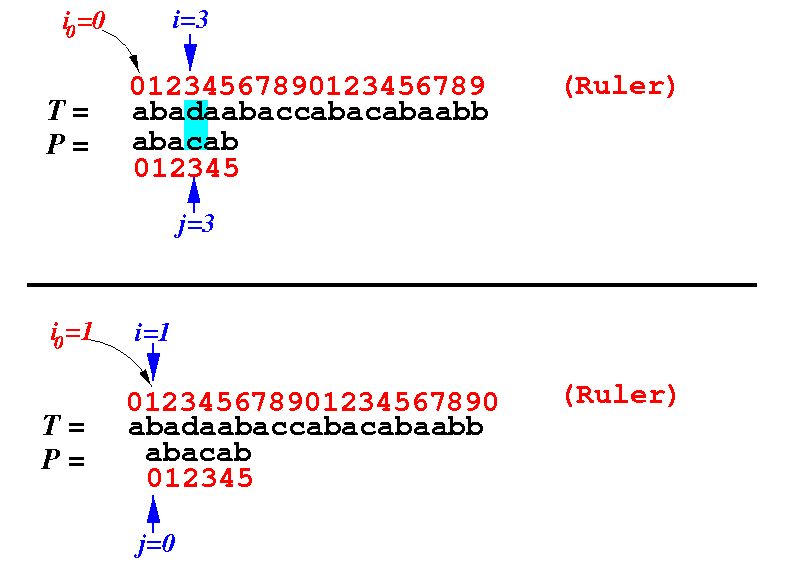

    If the characters T[i] and P[j] do not match, we can safely (= without making logic error) "slide" the pattern one position further

    Example:

    ---

  • This can be achieved by the following statements:

    i0 = i0 + 1; // Move pattern P one character further i = i0; // Restart matching at position i0 in T j = 0; // Restart matching at position 0 in P

    ---

    ---

  • BTW, the answer to the $64,000 question is:

    i = i - j + 1; j = 0; achieves the same rsult as: i0 = i0 + 1; // Move pattern P one character further i = i0; // Restart matching at position i0 in T j = 0; // Restart matching at position 0 in P because: i0 is equal to i - j

  ---

  ---

  ---

  ---

  ---

  ---

• The brute-force text matching algorithm --- revisted
  • Here is the brute force text matching algorithm (tries every starting position) written using the text traversal techniques described above:

    Basic( T, P ) { int i0, i, j, m, n; n = T.length(); m = P.length(); i0 = 0; // Line P up with the first character of T i = 0; // Start matching with first char in T j = 0; // Start matching with first char in P while ( i < n ) // Not all characters used { if ( T[i] == P[j] ) { i++; // Match next pair j++; if ( j == m ) return ( i0 ); // Match found at position i0 !!! } else { /* =========================================== P does not start at position i0... Try another position by moving P further =========================================== */ i0 = i0 + 1; // Move pattern P one character further i = i0; // Restart matching at position i0 in T j = 0; // Restart matching at position 0 in P } } return -1; // No match found }

    ---

  • Example Program: (Demo above code)
    • Prog file: click here

    How to run the program:

    Right click on link(s) and save in a scratch directory To compile:   javac Basic.java To run:          java xx

    ---

    ---

  • Here is the same program, without using the i0 variable: click here
