The Hungarian Algorithm for the Transportation Problem

Introduction
- The Hungarian Algorithm for the Transportation Problem is also a primal-dual Simplex method
- It is a simplex modification of the Hungarian Algorithm for the Assignment Problem

Overview of the Hungarian Algorithm (for Transportation Problem)

Recall the Goal:

Pseudo code:

Construct a subgraph graph G consisting of the "best cost edge" Find a maximal flow in subgraph G repeat until all supplies are exhausted { Add the "next best cost edge" to G; // Notice the quotes: it's more complex that just // looking at the cost of an edge Find a maximal flow in (modified) subgraph G; }

Capacity of an edge in the Transportation graph
- Recall the Transportation Problem ships products from factories to the warehouses
  This shipment is equivalent to commidity flow

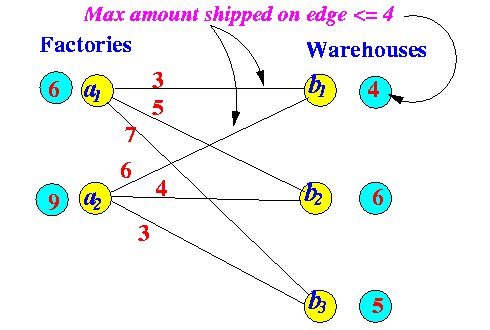

- Capacity of edges in the Transportation problem:

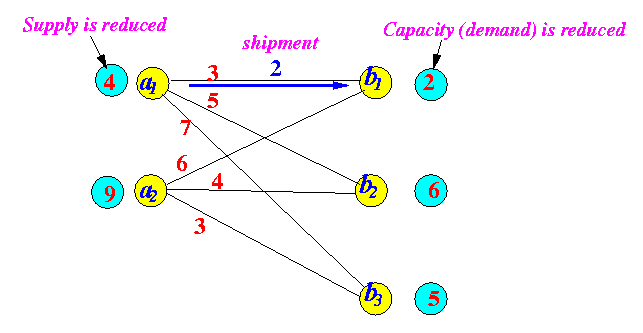

- The shipment of produce from a factory → warehouse will:

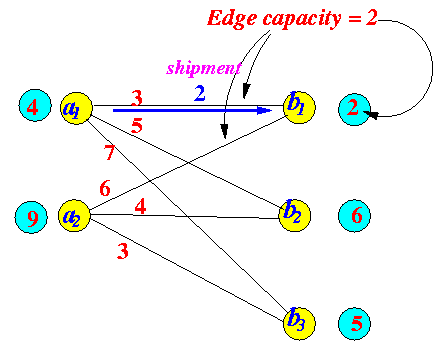

  Example:
  Note:

Finding Flow Augmenting Paths in a Transportation Graph

Recall: flow augmenting path

Flow Augmenting Path = a path from source to sink consisting of
(These are the 2 kinds of "flow augmenting edges in network flow)

Flow augmenting edges in a Transportation graph:
(We just apply the definition of the flow augmenting path to the Transportation bi-partite graph:

The Hungarian Algorithm (with examples)

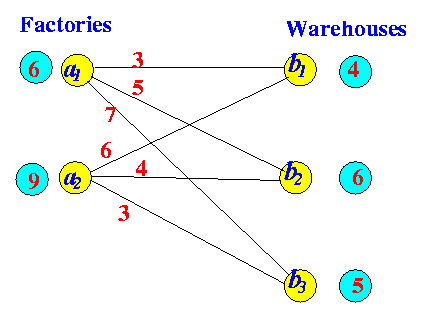

Example Transportation problem:

Cost Matrix: | b1 b2 b3 ----+------------------ A1 | 3 5 7 A2 | 6 4 3

The Hungarian algorithm: initial step

Initial step:

For each vertex ∈ X:

find the minimal cost edge and
subtract its weight from all weights connected with that vertex.

You will get at least one 0-weight edges for each node.

Example:

Min. weight edge of each node ∈ X	After subtracting cost from other edges
\| b1 b2 b3 ----+------------------ A1 \| 3 5 7 A2 \| 6 4 3	\| b1 b2 b3 ----+------------------ A1 \| 0 2 4 A2 \| 3 1 0

For each vertex ∈ Y:

find the minimal cost edge and
subtract its weight from all weights connected with that vertex.

You may get more 0-weight edges (and you not get any more)

Example:

Min. weight edge of each node ∈ X	After subtracting cost from other edges
\| b1 b2 b3 ----+------------------ A1 \| 0 2 4 A2 \| 3 1 0	\| b1 b2 b3 ----+------------------ A1 \| 0 1 4 A2 \| 3 0 0

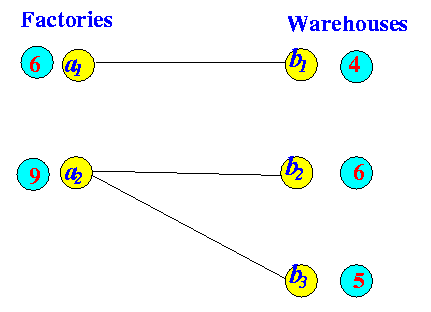

Consider the subgraph consisting only of the 0-weight edges after step 0:
Note:

Finding a maximum flow in the subgraph of the Transportation Problem:

Important:

We are trying to find a maximal flow in the subgraph consisting only of the 0-weight edges
So we will be using only these edge:
Remember that:

A very simple way to find flow augmenting paths in the Transportation subgraph:

Label all vertices x_i ∈ X with supply > 0 with "*"
(If all vertices ∈ X has supply = 0, the algorithm terminates)

For every newly labeled vertex x_i do:

label all adjacent unlabeled vertices y_j ∈ Y with the label "x_i"

I.e., we always use the forward edges.

This is because a forward edge can always be part of a flow augmenting path:

If a forward edge is unsaturated, it can carry more flow forward
If a forward edge is saturated, it can be part of a flow augmenting path by reducing the flow backwards

For every newly labeled vertex y_j do:
Because we will use this edge only as a backward edge and as such, it can only be flow augmenting if flow > 0

Repeat steps 2 and 3 until:

Either a vertex y_j ∈ Y with demand (capacity) > 0 receives a label
OR: after the labeling procedure terminates, there are no labeled vertices x_i with demand > 0

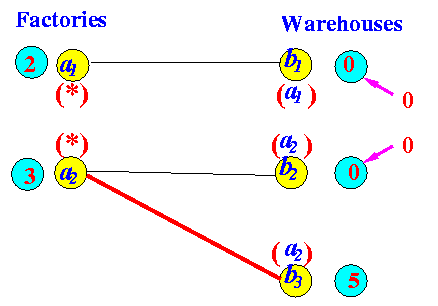

Example:

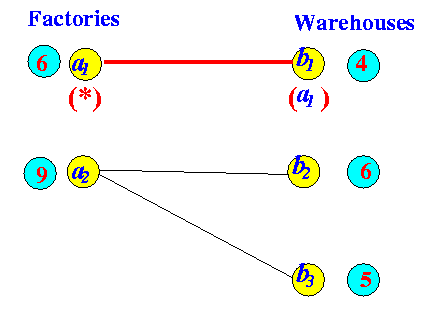

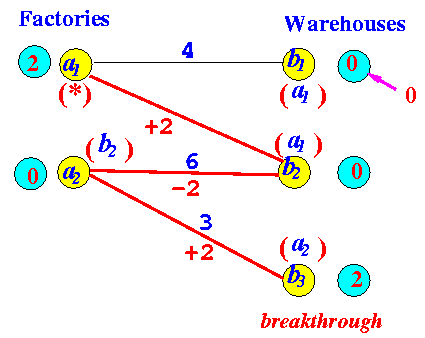

Find a Flow Augmenting Path

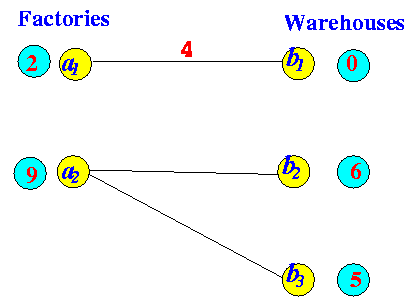

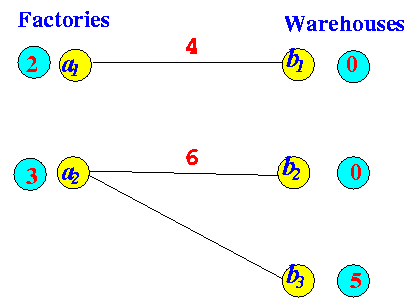

After augmenting flow

Find a Flow Augmenting Path

After augmenting flow

Find a Flow Augmenting Path

After augmenting flow

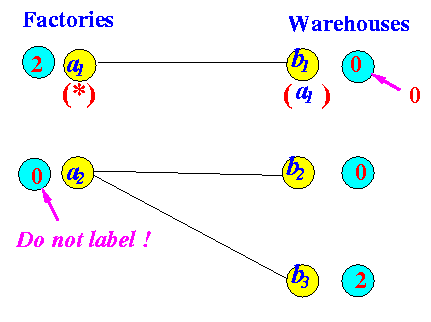

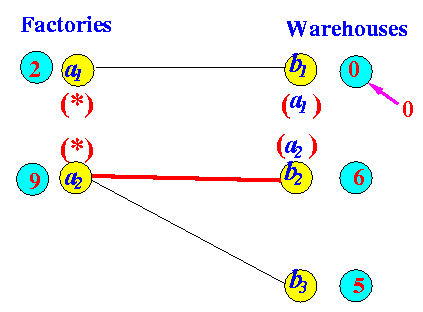

Find a Flow Augmenting Path

No flow augmenting path found

* | b1 b2 b3 ----+------------------ * A1 | 0 1 4 A2 | 3 0 0

Note:

The graph (in table form) includes the labels made by the last step of the max. flow algorithm

If matching = maximum (all vertices ∈ X, then we are done

But in this case, we are not done (yet) and enter the iterative step

Iterative step:

Add the "next least cost edge(s)" to the subgraph (it's more complex that just finding the smallest cost, because you have to consider the effect of other nodes) and
Find a new maximal mathcing

Iterative step:

Iterative step (only doen when the matching is not maximum (complete)):

Add the next least cost edge(s):

Look in the full bi-partite graph (with the label of the maximum flow algorithm added):

* | b1 b2 b3 ----+------------------ * A1 | 0 1 4 A2 | 3 0 0

Find all edges (with cost > 0) going from a labeled vertex ∈ X to an unlabeled vertex ∈ Y

* | b1 b2 b3 ----+------------------ * A1 | 0 1 4 A2 | 3 0 0

Find the minimum cost δ:

δ = 1

For each edge with cost > 0 such that: labeled vertex ∈ X → unlabeled vertex ∈ Y:

subtract δ from the cost of the edge

For each edge with cost > 0 joining an unlabeled vertex ∈ X → labeled vertex ∈ Y :

add δ from the cost of the edge

(This addition and subtraction is actually a pivoting operation in the Simplex Algorithm !!)

Example:

Before any operations	After the subtract step	After the addition step
* \| b1 b2 b3 ---+--------------- * A1 \| 0 1 4 A2 \| 3 0 0	* \| b1 b2 b3 ---+--------------- * A1 \| 0 0 3 A2 \| 3 0 0	* \| b1 b2 b3 ---+--------------- * A1 \| 0 0 3 A2 \| 4 0 0

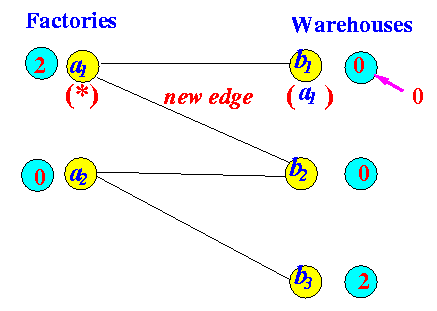

Add the new 0-cost edges to the subgraph:

Find a max flow in the new subgraph (by labelling)

Find a Flow Augmenting Path

After augmenting flow

Find a Flow Augmenting Path

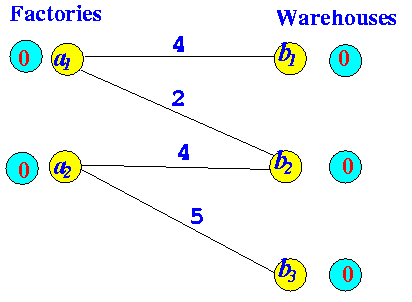

Optimal !!!

There are no supply vertex with supply > 0
I.e.: all products have been transported
We have found the optimum solution !

Another worked out example

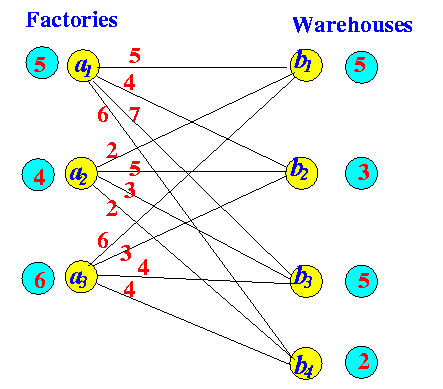

Problem description:

Transportation graph	Cost Matrix
	\| b1 b2 b3 b4 ----+--------------------- a1 \| 5 4 7 6 a2 \| 2 5 3 2 a3 \| 6 3 4 4

Find the optimum (least cost) transportation scheme.

Solution:

Initialization:

Subtract the least cost of each vertex ∈ X from all weights connected to that vertex

This is the same as:

Subtract the smallest value in each row from all other values in that row

Result:

Before subtraction: | b1 b2 b3 b4 ----+--------------------- a1 | 5 4 7 6 a2 | 2 5 3 2 a3 | 6 3 4 4

After subtraction: | b1 b2 b3 b4 ----+--------------------- a1 | 1 0 3 2 a2 | 0 3 1 0 a3 | 3 0 1 1

Subtract the least cost of each vertex ∈ Y from all weights connected to that vertex

This is the same as:

Subtract the smallest value in each column from all other values in that row

Result:

Before subtraction: | b1 b2 b3 b4 ----+--------------------- a1 | 1 0 3 2 a2 | 0 3 1 0 a3 | 3 0 1 1

After subtraction: | b1 b2 b3 b4 ----+--------------------- a1 | 1 0 2 2 a2 | 0 3 0 0 a3 | 3 0 0 1

Initial Subgraph:

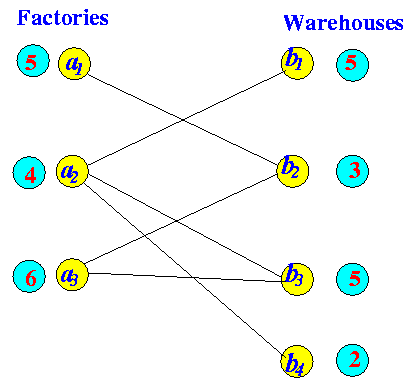

Subgraph with 0-weight edges:

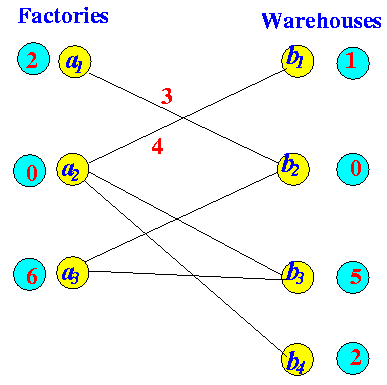

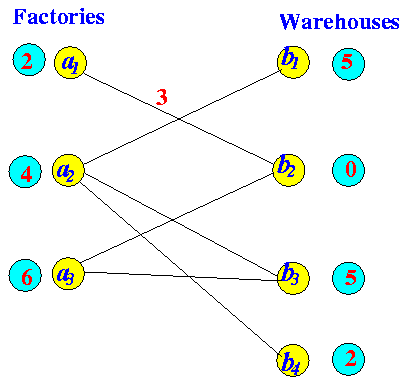

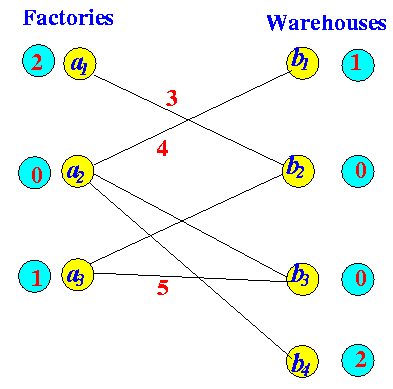

Find a Max flow:

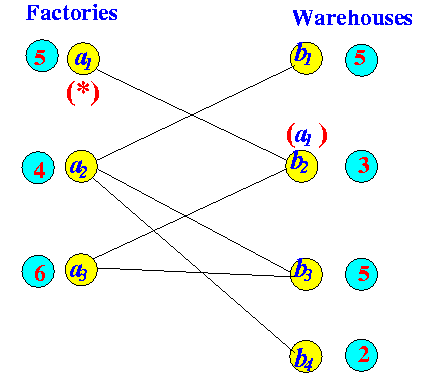

Labelling to find "FAP"	After increasing flow

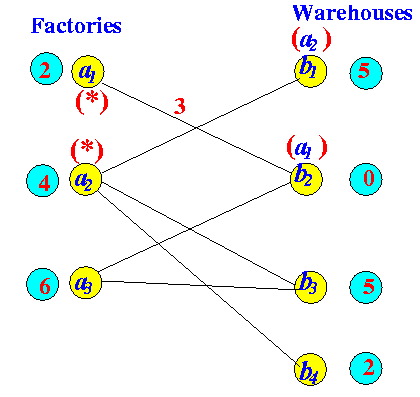

Labelling to find "FAP"	After increasing flow

Labelling to find "FAP"	After increasing flow

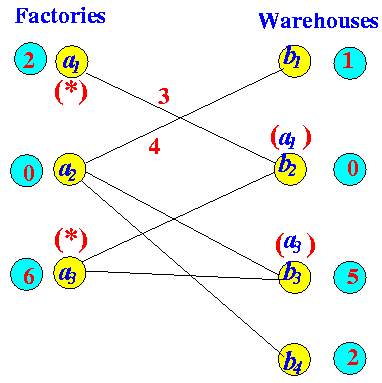

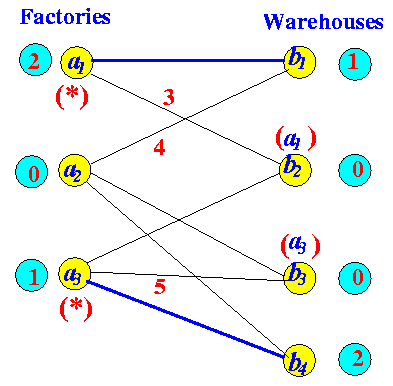

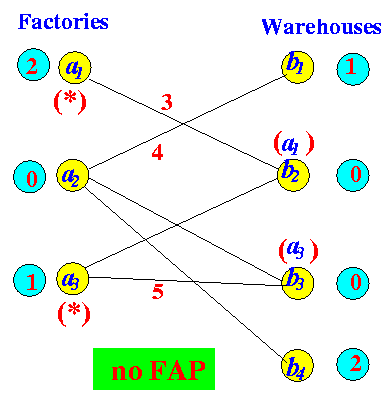

Labelling to find "FAP"	Prepare to add more edges...
	*Labeled nodes at end of algorithm: * \| b1 b2 b3 b4 ----+--------------------- * a1 \| 1 0 2 2 a2 \| 0 3 0 0 * a3 \| 3 0 0 1**

Iteration 1:

The incomplete solution:

Edges labeled x_i → unlabeled y_j: (marked red) * * | b1 b2 b3 b4 ----+--------------------- * a1 | 1 0 2 2 a2 | 0 3 0 0 * a3 | 3 0 0 1 δ = 1

Recalculate edge costs to find new 0-weight edges:

Subtract δ (1) from the cost of edges labeled x_i → unlabeled y_j:
Result: * * | b1 b2 b3 b4 ----+--------------------- * a1 | 0 0 2 1 a2 | 0 3 0 0 * a3 | 2 0 0 0

Add δ (1) to the cost of edges unlabeled x_i → labeled vertex y_j (only when cost of edge > 0)
Result: * * | b1 b2 b3 b4 ----+--------------------- * a1 | 0 0 2 1 a2 | 0 4 0 0 * a3 | 2 0 0 0

New subgraph with additional 0-weight edges:

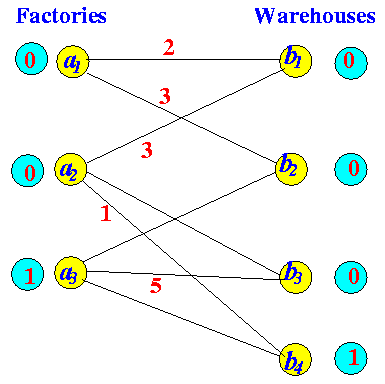

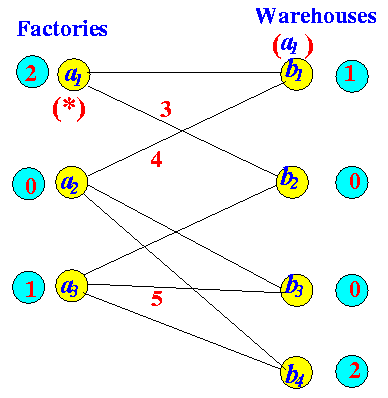

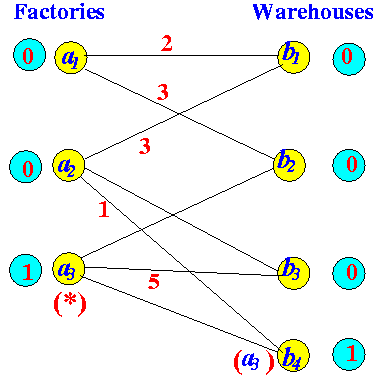

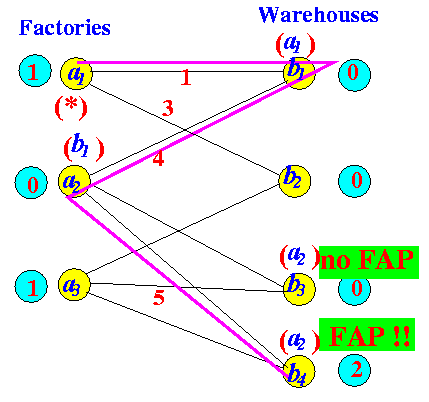

Find a Maximal Flow (through labelling):

No more unsatisfied supplies in X

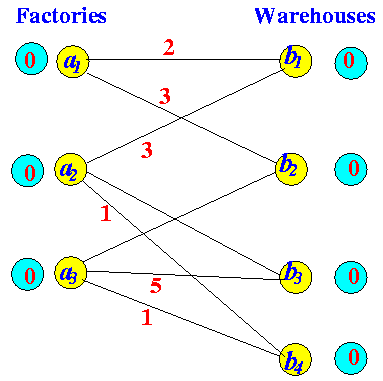

We have found the optimal solution:
Cost of optimum solution:

Compare to the solution obtained by LP:

Value of objective function: 54.00 Actual values of the variables: x11 2 x12 3 x13 0 x14 0 x21 3 x22 0 x23 0 x24 1 x31 0 x32 0 x33 5 x34 1

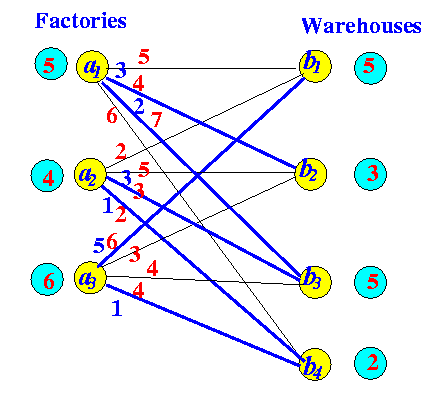

Side by side comparison:

LP solution	Solution by Hungarian Algorithm

Note:

The cost of both solutions are the same (= 54) !!!
