The scope of local variables

Murphy's Law
- The famous Murphy's Law says:
Limiting the damage caused by Murphy's Law
- What can go wrong in a computer program:
- What can we do to reduce the likelihood that we update a wrong variable:

How to limit the access of variables

Consider the following 2 programs:

Program "Scope1"	Program "Scope2"
public class Scope1 { public static void main(String[] args) { double r; r = 3.14; System.out.println(r); } }	public class Scope2 { public static void main(String[] args) { { double r; r = 3.14; } System.out.println(r); } }

Program "Scope1"

Program "Scope2"

public class Scope1 { public static void main(String[] args) { double r; r = 3.14; System.out.println(r); } }

public class Scope2 { public static void main(String[] args) { { double r; r = 3.14; } System.out.println(r); } }

The only difference is we put the definition of the variable r inside a block in Program "Scope2"

When we compile the 2 programs, we get completely different results:

The program "Scope1.java" compiles with no errors

The program "Scope2.java" results in the following error:

Scope2.java:11: cannot find symbol symbol : variable r location: class Scope2 System.out.println(r); ^ 1 error

The Java compiler is telling us that: there is no variable r defined when it tried to translate the statement

System.out.println(r);

Look at the program Scope2.java:

public class Scope2 { public static void main(String[] args) { { double r; <---- We DID define a variable r here r = 3.14; } System.out.println(r); <--- How come the Java compiler can't find it ? } }

Example Program: (Try it out yourself !)

Prog file Scope1.java: click here
Prog file Scope2.java: click here

How to run the program:

Right click on the links and save in a scratch directory
To compile: javac Scope1.java and javac Scope2.java
(No need to run the programs, just look at the error message)

Explanation of this behavior:
That is why the variable r is not accessible in program Scope2.java:
On the other hand, the variable r is accessible in program Scope1.java:

Scope of a variable

Scope

Factors that determine the scope of a variable:

When is the variable created (a variable must exist before it can be accessible)
When is the variable destroyed (a variable that has been destroyed is not accessible)
Between the 2 location above, the scope of a variable is further limited by the block in which it is defined

Example 1: scope of the variable r in program Scope2.java
Example 2: scope of the variable r in progtram Scope1.java

Exercise in class

Consider the following program:

public class Scope3 { public static void main(String[] args) { { r = 1; // (1) double r; r = r + 5; // (2) } r = r + 2; // (3) } r = r + 3; // (4) }

Questions:

Which of the statements marked (1), (2), (3) and (4) will cause an error ?

Answers:

(1) causes error because the variable r has not yet been defined (i.e., uses the variable r outside its scope)
(2) --- no error
(3) causes error because the scope of variable r has ended (i.e., uses the variable r outside its scope)
(4) causes error because the statement is not contained inside a method !

Same variable names inside one scope

Recall that:

To avoid confusion, Java (in fact, every programming language) imposes the follow rule:

You cannot define different variables with the same name inside the same scope

Example: this is not allowed

public class Scope7 { public static void main(String[] args) { /* ------------------------------------------- 2 variables named r inside the SAME scope ------------------------------------------- */ double r = 0.0; int r = 0; // Error ! System.out.println(r); } }

Example Program: (Demo above code)
- Prog file: click here
How to run the program:
Error message:

Special scope configurations

Fact:
Multiple pairs of braces can form 2 configurations

Possible configurations of multiple (matching) pairs of braces { .... }:

Configuration 1: non-overlapping

The order of the braces are:

The sequence must start with an open brace {
The next brace is a closed brace } that matches the first open brace
Then the next brace must be an open brace {
The sequence must end with an closed brace } (matching the second open brace)

Configuration 2: nested

The order of the braces are:

The sequence must start with an open brace {
The next brace is another open brace {
Then the next brace must be an closed brace } which matches the second open brace
The sequence must end with an closed brace } (which now matches the first open brace)

There are no other possible configuration

Non-overlapping (or disjoint) scopes
- Disjoint scopes

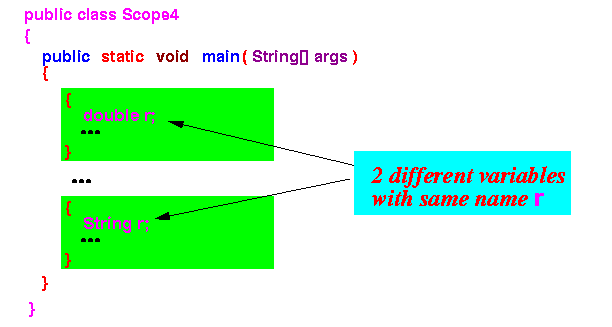

  Example: the following 2 blocks create disjoint (non-overlapping) scopes

Variables with same name in disjoint scopes

Interesting phenomenon in disjoint scopes:
Example:

Proof the 2 variables named r are in fact different variables:

We can show this fact with the effect of the + operation:

The + operation performed on a double typed data will perform an add operation
The + operation performed on a String typed data will perform an concatenation operation

Programming proof that the 2 variables with name r are different variables:

public class Scope4 { public static void main(String[] args) { { double r = 3.14; r = r + 5; // + = add operation System.out.println(r); } { String r = "3.14"; r = r + 5; // + = concatenation System.out.println(r); } } }

Output of program:

8.14 (addition of 3.14 + 5) 3.145 (concatenation of "3.14" + "5")

Example Program: (Demo above code)
- Prog file: click here
How to run the program:

Nested Scopes
- Nested scopes
  Example: the following 2 blocks create a nested scopes
  The enclosing block forms the outer scope
  The enclosed block forms the inner scope

Scoping rule for nested scope

Scoping rule for nested scopes:
Example:
Detailed explanation:

Program to illustrate the nested scope rule:

public class Scope5 { public static void main(String[] args) { { double r = 3.14; { r = 5; // No error t = 5; // Will cause "undefined variable" error } double t = 1.0; } } }

Example Program: (Demo above code)
- Prog file: click here
How to run the program:

Variables with same name in nested scopes

Consider the following 2 variables definitions:

public class Scope6 { public static void main(String[] args) { { // Start of outer scope double r; { // Start of inner scope String r; ... } } } }

The first definition of the variable r takes places inside the outer scope

The second definition of the variable with the same name r takes places inside the inner scope

From what we have learned above, the first variable r is also accessible inside the inner scope
Therefore, there are 2 different variables with the same name (r) inside the inner scope

Houston, we have a problem...

$64,000 question:

Is this allowed ?

Answer:

The answer to this question is: depends on the choice made by the designer of the programming language
The designer of the Java programming language believes that this is confusing and has decided that this construct is not allowed in Java
Other programming languages (C/C++) allows it (but we will not go into the details in class - if you are interested, send me an email)

Note:

This situation is not covered by the rule that:
The reason is the fact that the inner scope and the outer scope are different scopes
Why ? Well, the inner scope and the outer scope have different boundaries !!!
So this situation is not covered by the above rule !

Exercise in class

What will be printed by each of the print statements:

public class Exercise1 { public static void main(String[] args) { { double r = 3.14; { String s = "1234"; r = r + 2; System.out.println( s + r ); } { int s = 1234; System.out.println( s + r ); } } } }

Answer:

12345.14 1239.14

Example Program: (Demo above code)
- Prog file: click here
How to run the program:

Quiz for class

Does the following program has any errors:

public class ScopeX { public static void main(String[] args) { { String r = "abc" ; System.out.println(r); } double r = 4.0; System.out.println(r); } }

Does it violate the rule:

You cannot define two variables with the same name in the same scope ???

Answer:

No, because:

String r is allowed because:

public class ScopeX { public static void main(String[] args) { { String r = "abc" ; // There is no variable r defined YET !!! // So: only 1 variable named r in scope System.out.println(r); } double r = 4.0; System.out.println(r); } }

double r is allowed because:

public class ScopeX { public static void main(String[] args) { { String r = "abc" ; System.out.println(r); } double r = 4.0; // The variable "String r"'s scope has ENDED ! // So this variable r is the ONLY variable // by that name System.out.println(r); } }

Example Program: (Demo above code - try it out yourself !)
- Prog file: click here
How to run the program:
