- The basis for the
branch and bound method are these
facts:
- max(IP)
≤ max(LP)
(LP = the linear relaxation of the IP)
- If the LP is
infeasible
(i.e., has no solution),
then the IP is
also
infeasible
- If the LP problem has an integer-valued optimal solution, then the solution is equal to the optimal solution for the IP problem.
- max(IP)
≤ max(LP)
- Branch and bound uses
2 heuristics
- The branch heurstic
- The branch heuristic is used
to force the
Simplex Method away from
a non-integer valued solution
(I.e., the branch heuristic will make the Simplex Method find integer valued solutions)
- The branch heuristic will generate many different LP problems in the process !
- The branch heuristic is used
to force the
Simplex Method away from
a non-integer valued solution
- The bound heuristic
- The bound heuristic is used to limit the number of LP problems generated by the branch heuristic
- The branch heurstic
- How to solve the
Integer Program:
- We will start with the
linear relaxation of
the Integer Program
Example:
- Then
apply the
branch and bound heurstic
on the
linear relaxation
until we find the
optimal integer solution
- The Branch heuristic
will produce many Linear Programs
LPk
that must be solved by using the
Simplex Method
- Each
Linear Program LPk
that has
non-integer valued solution
may be split (= branch)
- Each Linear Program LPk that has an integer valued solution be prune (= bound) the unsolved Linear Programs
- Each
Linear Program LPk
that has
non-integer valued solution
may be split (= branch)
- One of these Linear Programs generated by the branch procedure will have the optimal integer solution
- The Branch heuristic
will produce many Linear Programs
LPk
that must be solved by using the
Simplex Method
- We will start with the
linear relaxation of
the Integer Program
- Branching:
- Branching =
to split a
LP problem (A)
into 2 sub-problems
(A1 and A2)
where:
- Optimal solution(A) = max( Optimal solution( A1) , Optimal solution( A2) )
- The subproblems will
help us
obtain an
integer valued solution
- The branch procedure prohibits the Simplex Method from using some non-integer solution and forces the Simplex Method for find integer-valued solutions.
- Branching =
to split a
LP problem (A)
into 2 sub-problems
(A1 and A2)
where:
- The branch procedure
(general description)
- Suppose a LP problem (A)
has a non-integer valued
variable
xk
as optimal solution:
Idea:
- We force the Simplex Algorithm to not use the fraction optimal value
- The branch procedure will
create the 2 LP problems
by
adding
one
of the 2 constraints:
Linear Program 1: add the constraint xk ≤ "rounded-down-value"
Linear Program 2: add constraint xk ≥ "rounded-up-value"Example:
Note that:
- In both new LP problems (A1 and A1), the solution where xk = 3.75 are now infeasible !!!
- Suppose a LP problem (A)
has a non-integer valued
variable
xk
as optimal solution:
- A concrete example of
the branch heuristic:
- Consider the following
Integer Program:
- Corresponding
linear relaxation:

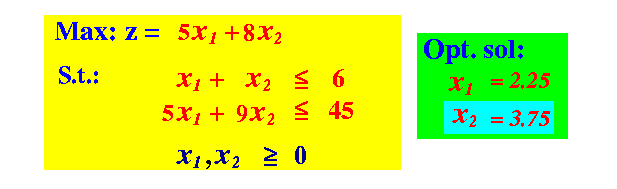

Optimal solution: (solved using the lp_solve tool)
Value of objective function: 41.25000000 Actual values of the variables: x1 2.25 x2 3.75
lp_solve input: click here
Graphically:
- We will now force the
Simplex Method to
avoid using
x2 = 3.75
The optimal integer solution have be one of the following:
(1) x2 ≤ 3 (2) x2 ≥ 4Therefore, we will replace the original LP problem with 2 derived LP's, each with one additional constraint:
One of these 2 LP's must contains the optimum solution (and hopefully, the solution is integer valued)
- Consider the following
Integer Program:
- Before we
discuss the bound heuristic,
let's solve the
Linear Programs
generated by the
previous branch example:
- Branching on the
non-integer value
x2 = 3.75:
We replace:
with these 2 derived LP problems:
- We can use
lp_solve to
find the
solution of the
2 new LP problems
Here are the inputs for lp_solve:
- lp_solve input for sub problem 1: click here
- lp_solve input for sub problem 2: click here
Solutions:

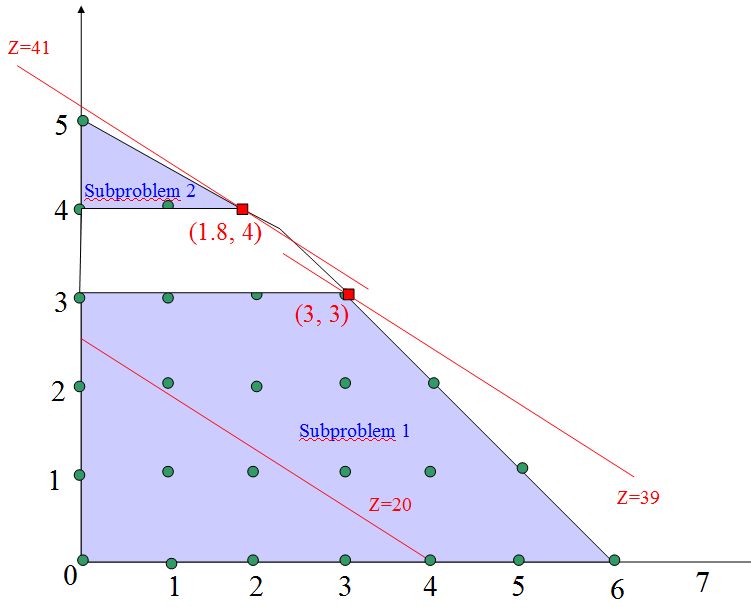

The following figure shows these 2 solution in more detail:
We can see that the branch heuristic has successfully forced the Simplex Method to find an integer solution by:
- "Cutting" the feasible solution space into 2 halves along an integer-valued line and creating integer valued corner points for the Simplex Method !!!
- Branching on the
non-integer value
x2 = 3.75:
- Summary:
- The Branch heuristic
"helps" the
Simpelx Method
find integer valued solutions by
creating
integer valued corner points
in the
feasibility region
- (Because the Simplex Method will only use corner points for optimal solutions !!!)
- The Branch heuristic
"helps" the
Simpelx Method
find integer valued solutions by
creating
integer valued corner points
in the
feasibility region
- Definition:
incumbent solution
- incombent solution (or incumbent for short) = the best solution value found so far that satistfies the integer-valued constraints.
Example:
- When we solve the
first LP problem:
we do not have any incumbent solution yet
(Because the solution does not satisfy the integer value constraints)
- After we branch on
x2 = 3.75 and
solved these
2 derived LP's:
we have an incumbent solution:
incumbent Z* = 39 (the best solution value so far)
- Note:
- The incumbent solution is traditionally denoted by Z*
- Recall:
- The branch heuristic will
generate
many derived Linear Program
problems
- Some of
these Linear Program
may
produce
the optimal solution
for the
Integer Program
- To find a solution for the Integer Program, the branch heuristic will split a Linear Program into 2 linear program using some variable that has a non-integer valued solution
- The branch heuristic will
generate
many derived Linear Program
problems
- Purpose of
The Bound heuristic(s):
- A bound heuristic is
used to
remove some
Linear Programs
that are generated
by the
branch heuristic
(Because those Linear Programs will certainly not produce a better solution)
- A bound heuristic is
used to
remove some
Linear Programs
that are generated
by the
branch heuristic
- There are 3 bounding technqiues
to remove a Linear Program
LP:
- If
the LP
is infeasible, we can
delete LP, because:
- If the LP is infeasible, then the corresponding Integer program (IP) is also infeasible
- If:
solution(
LP )
≤ Z*
(incumbent solution),
we can
delete LP, because:
- From the property:
OptimalSOlution( IP ) ≤ OptimalSolution( LP ) ≤ Z*
we know that we will not find a better solution than Z* using this LP !!!
- From the property:
- Finally, we can also
delete the LP when:
- The solution of
LP is
integer valued !!!
(Because we have solve the Integer Program !!!)
Note:
- We must update the incumbent solution in this case !!!!
- The solution of
LP is
integer valued !!!
- If
the LP
is infeasible, we can
delete LP, because:
- Branch and Bound Algorithm:
Input: Integer Program IP; SetOfLP = Linear Relaxation of IP; Z* = NULL; while ( SetOfLP ≠ empty ) { LP1 = pick an arbitrary LP from SetOfLP; Solve LP1 with Simplex Method: Max1 = optimum value of LP1 Sol1 = solution values of the variables if ( LP1 is infeasible ) { delete LP1 from SetOfLP; // Bound heuristic 1 } else if ( Z* ≠ NULL && Max1 ≤ Z* ) { delete LP1 from SetOfLP; // Bound heuristic 2 } else if ( Sol1 has only integer values ) { if ( Max1 > Z* ) Z* = Max1; // Better incumbent solution found ! delete LP1 from SetOfLP; // Bound heuristic 3 } else { /* =============================== Apply "branch" heuristic =============================== */ Select a variable xk that has a non-integer solution value; Replace LP1 in SetOfLP with 2 derived LP programs: LP1-A: add a constraint "xk ≤ roundDownValue" LP1-A: add a constraint "xk ≥ roundUpValue" } }
- Integer Program:
- Branch and Bound Solution:

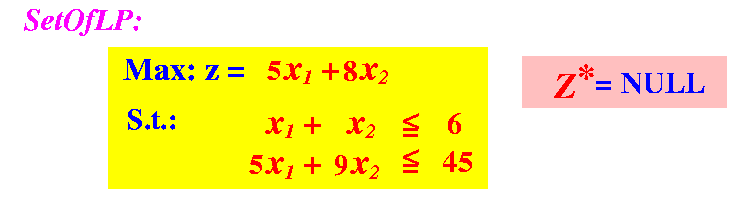

- Initialization:
- Iteration 1:
- Current state:
- Pick an LP from
SetOfLP and
solve it:
- According to the
Branch and Bound Algorithm,
we perform a
branch operation
(we can pick a "branch" (split) variable arbitrarily)
- Current state:
- Iteration 2:
- Current state:
- Pick an LP from
SetOfLP and
solve it:
- According to the
Branch and Bound Algorithm,
we perform a
bound operation
(I.e., we discard the LP)
But: we must update Z*
- Current state:
- Iteration 3:
- Current state:
- Pick an LP from
SetOfLP and
solve it:
- According to the
Branch and Bound Algorithm,
we perform a
branch operation
(We have to branch on x1 because it's the only non-integer valued "branch" (split) variable)
- Current state:
- Iteration 4:
- Current state:
- Pick an LP from
SetOfLP and
solve it:
- According to the
Branch and Bound Algorithm,
we perform a
branch operation
(We have to branch on x1 because it's the only non-integer valued "branch" (split) variable)
- Current state:
- Iteration 5:
- Current state:
- Pick an LP from
SetOfLP and
solve it:
- According to the
Branch and Bound Algorithm,
we perform a
bound operation
- Current state:
- Iteration 6:
- Current state:
- Pick an LP from
SetOfLP and
solve it:
- According to the
Branch and Bound Algorithm,
we perform a
bound operation
Note:
- Because the new solution (37) is ≤ incumbent solution (39), the incumbent solution is unchanged !
- Current state:
- Iteration 7:
- Current state:
- Pick an LP from
SetOfLP and
solve it:
- According to the
Branch and Bound Algorithm,
we perform a
bound operation
Note:
- Because the new solution (40) is > incumbent solution (39), we update the incumbent solution !
- Current state:
- Iteration 8:
- Current state:
- DONE !!!
Optimal Solution: Object function value = 40 x1 = 0 x2 = 5
