Passing parameters and allocating local variables using the program stack

Reminder: memory organization of a running program (see: click here )
- When a program starts its execution, the memory usage will be as follows:
- When we invoke a method, e.g.:
  The method invocation will allocate (= reserve memory) the parameter variables and the local variables of the method on the program stack:
  In fact:
Review: program stack in the ARM processor-based computer system
- The program stack is implemented using the special purpose register SP
- For a detailed review, see these webpages:
What happens when we use the program stack to store parameters and local variables

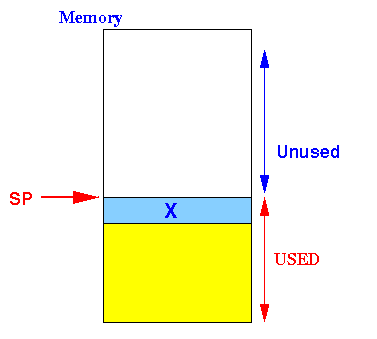

- The stack pointer is used indicates the part of memory that is currently in use:
  Notice that:

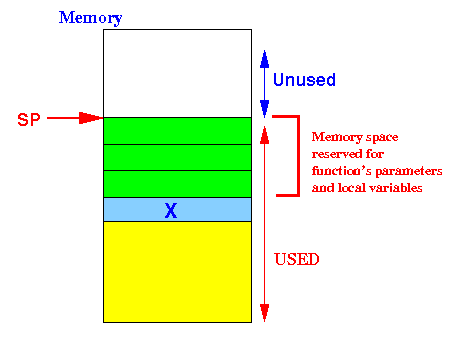

- When a function use the program stack to store its parameters and local variables, it must reserve space in the unused area to store the parameters and local variables:
  This is what we will be doing...
  However.... things is a little bit more complicated that just storing parameters and local variables....
  Because we must also store other things !!!!
  (That's why the key to understanding how to store parameters and local variables using the program stack is: organization)
Recall: structure of a non-leaf function
- Recall that a non-leaf function must save its return address on the program stack.
- The structure of a non-leaf function was as follows:
  So when a non-leaf function begins execution, it must first push its return address on the program stack !!!
- That means, the program stack will contain (at least) the following:
  The stack will contain a complex object with different parts
  We call this object: a stack frame or a "procedure activation record"
  (More detail on this object later)
- Furthermore:
  We will use a register to point to the stack frame to allow us to access the parameters and local variables.
  This register is typically called the frame pointer register (or FP) because it points to a stack frame object.

Attention: pay attention to the ordering of events and the data structure (= stack frame) constructed by these sequence of events

In what follows, I will illustrate the steps where a caller program will call a subroutine with parameters and local variables:

The caller program will pass its parameters on the program stack and then use bl to call the subroutine
The (called) subroutine will create (= allocate) local variables on the program stack
In addition (because it's a non-leaf function), the subroutine will first save its return address on the program stack
Furthermore, to access parameters and the local variables in the stack, the subroutine will point to the stack frame with the FP (Frame Pointer) register
The FP (Frame Pointer) register is shared (just like the LR register that stores the return address and must also be saved on the stack !!!

The steps (= events) will always happen in the same specific sequence !!!

And these events (with a fixed ordering) will therefore construct a structure on the program stack that always has the same specific structure

Therefore:

Pay attention to the ordering of the events and the resulting data structure that will be constructed by this sequence of events (to help you understand and remember the structure)

Structure of the stack when methods pass parameters and allocate local variables

What will happens with the program stack when methods use it to pass parameters and reserve space for local variables pass a parameter:

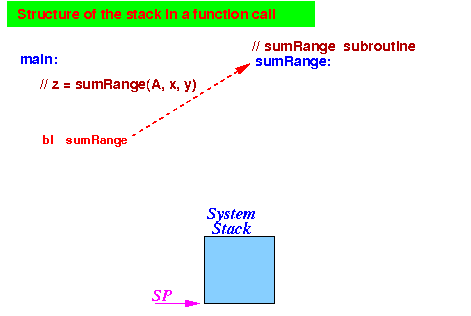

We know that main will need to use the "bl sumRange" instruction to call the method/subroutine sumRange:
After executing the "bl sumRange" instruction, the program execution will continue in the sumRange method.
Therefore, we must pass the parameters before the "bl sumRange" instruction
In other word: we must push the parameters on the stack before we call the method:
After passing the parameters on the program stack, the caller method (= main) executes the bl sumRange instruction to call the sumRange( ) method
The bl sumRange instruction will save the return address in the LR register
The called method will now start its execution
Recall that the first thing that a non-leaf subroutine must do is:
(I know sumRange is not a non-leaf subroutine, but the discussion on using the stack to store parameters and local variables was caused by a non-leaf subroutine and I am using sumRange only as illustration - just pretend that it is a non-leaf subroutine in this discussion)
So the stack will have the following information after the called subroutine has saved its return address:

The called method will first establish a base pointer into the program stack so it can access its own parameters (and its own local variables)

The special purpose FP (Frame Pointer) is reserved for this purpose.

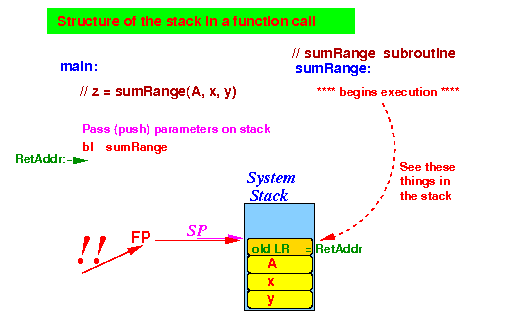

In other words, the called function wants to initialize the FP register with the following address:

However:

The FP register is a shared resource (and is used by other function to access their own parameters and local variables
This is the same situation as the return address stored in the LR register !!!

Therefore: we must save the FP register first, before we use it for ourselves.

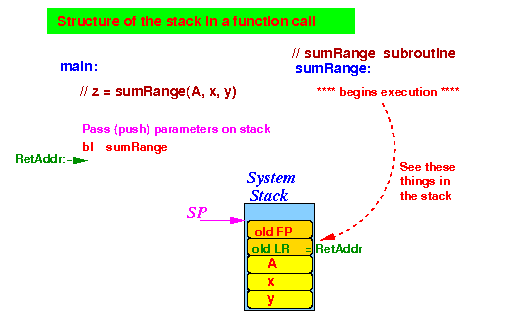

So we must push the FP (Frame Pointer) register on the stack (just like the return address in LR):

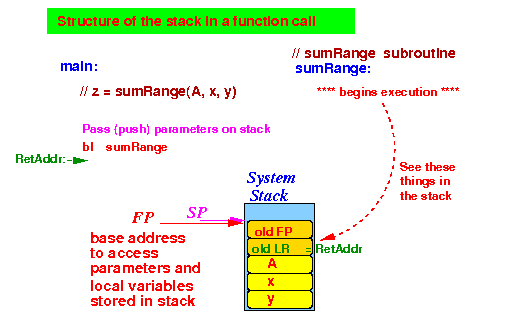

And now we can make FP point to the stack top:

FP will be the base address that the function will use to access its parameters and local variables stored in the stack !!!

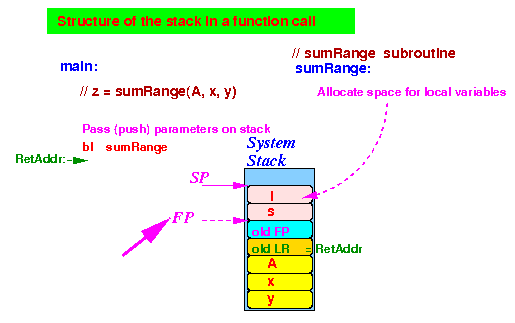

Finally, the function will allocate more memory in the stack for its local variables:

So the structure of the data stored in the stack when we use it to pass parameters and store local variables is always as follows:

To access the parameters of the subroutine/method, we use positive offsets from the FP (Frame Pointer) register

To access the local variables of the subroutine/method, we use negative offsets from the FP (Frame Pointer) register

Summary: building the stack frame

Summary: (building the stack frame)

When the stack is used to pass parameters and store local variables, the method/function will always construct (= organize) the (1) parameters, (2) local variable, (3) FP and (4) return address in the following data structure as follows:
This data structure is called a (subroutine) activation record or stack frame
Wikipedia page: click here

These are the prescribed action (= recipe) that a method (program) must do in order for a method/function to use the stack to pass parameters and store local variables:

The calling method will push the parameters on the stack and the call the method

Example:

load parameter 3 into r0 push {r0} load parameter 2 into r0 push {r0} load parameter 1 into r0 push {r0} bl Method/Function

This will result in the following stack:

When the called function returns, the pushed parameters will still be on the stack !!!
The calling function must de-allocate the pushed parameters from the stack
Example:

When the called method/function starts running, the stack will only contain the parameters:

The called method/function must first use this specific sequence of assembler instruction to build/complete the stack frame (activation record) structure :

push {lr} // Save the shared LR reg (contains return addr) push {fp} // Save the shared FP reg (contains the base addr of stack frame) mov fp, sp // Establish the base address in the FP register sub sp, sp, #N // Allocate N bytes for local variables

This sequence of instruction is called the prelude of a method and will build this data structure (it's called an activation record or stack frame):

After the prelude, you can write the instructions of the method (in assembler code)
The instructions can access the parameters and local variable using some offset from the base address in the FP register:
The offset of the 1st parameter is 8 (from the base address in FP)
The offset of the 2st parameter is 12 (from the base address in FP)
Etc.
The offset of the 1st local variable is -8 (from the base address in FP)
The offset of the 2st local variable is -4 (from the base address in FP)
Etc.
