- In order to solve a problem, you gotta understand it first -
and I mean, really understand it, not just half-and-half understanding
- So why did it take so long to branch ???
- The branch instruction contains an offset that need to be added to the value of the PC to form the final target destination address - the branch instruction "jumps" to this target destination address
- You may or may not have noticed that BRANCH instructions
DO NOT use registers as source operands,
nor do they update registers
- So all this data forwarding hardware stuff is
absolutely not applicable to BRANCHING instructions
- Because the CPU with the data forwarding hardware depicted
is crowded (not to mention messy),
I will discuss the issues using the original basic pipeline
You must be aware that the data forwarding hardware discussed previously are implicitly assumed, but these hardware does not provide any support in executing the branch instruction..... and therefore left out of the pictures.
- Value of the PC (PC1)
- Value of the Offset (IR1)
- Conditional codes
- Information needed to
execute a
(conditional) branch instruction:
- Value
of the program counter (PC):
(to compute the address in a
relative branch
- The value of the PC is available in the PC1 register in the ID stage
- Value of the
(relative) branch offset
- This value
of
the branch offset is available
in the IR1 register
in the ID stage
- This value can also be obtained from the source operand 2 field in the instruction code
- This value
of
the branch offset is available
in the IR1 register
in the ID stage
- Value of the flags (N, Z, V, Z)
computed by the compare instruction
prior to the
conditional branch instruction
- The values of the N,Z,V,Z flags are computed when the compare instruction is inside the EX stage
- Value
of the program counter (PC):
(to compute the address in a
relative branch

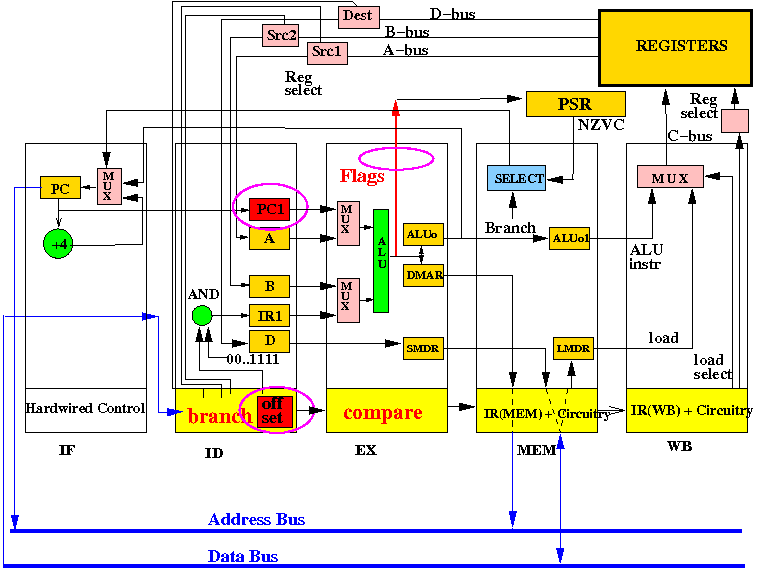

- The following figure depicts
the location of the
(conditional) branch instruction and
its preceeding
compare instruction during
a pipelined execution:
- The figure above also show where to find (i.e., the locations)
of the relevant data needed to execute the branch instruction:
- The offset in IR(ID) must be extracted
- Then added to the value in PC1
- The conditional code produced by the ALU along with the branch condition is used to determine if the branch will be taken.
- Now that we know what needs to be done, it is relatively easy to
add (new) hardware to speed up the execution of the branch
instruction.

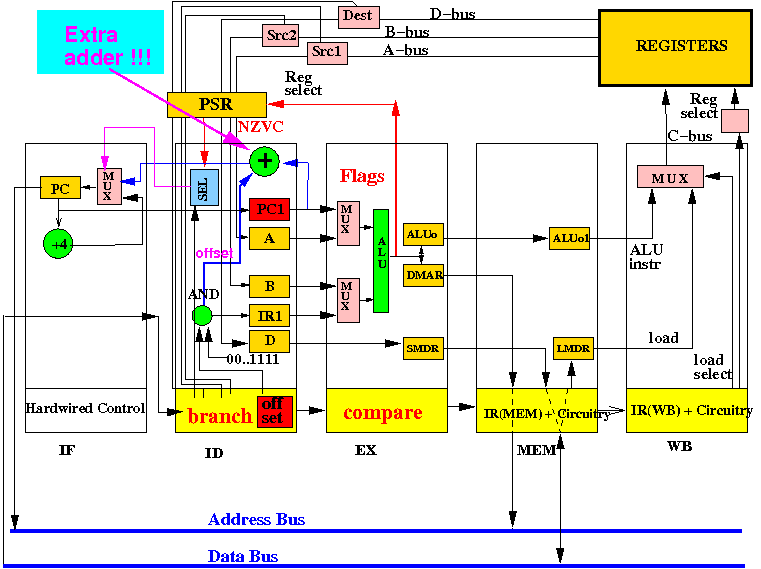

- The following figure show the wiring scheme:
- We need to add a special purpose adder circuit
in the ID stage - this adder is used to add PC1 and the offset
to form the target destination
The reason that we can use the adder in the ALU stage is "tardiness" - it takes too long to bring PC1 and offset to the ALU stage and add there (when we do that, the CPU fetches 3 instructions before the branch will take place)
Note that this a significant amount of overhead (price) that we must pay to speed up branching....
- The constant in the instruction is extracted and use immediately
as an operand in the special purpose adder.
Using the result in IR1 is not timely because the output of IR1 is equal to the constant only at the END of the CPU cycle
- The conditional code from the ALU is sent into the PSR and
the output of the PSR is used to determine the branch.
To make this work, we have to update the PSR in the middle of the CPU cycle and the PC at the end of the CPU cycle.
- Let's look at how the improve pipeline execute branch instructions....
I will show you the two types of branch instructions: unconditional and conditional
