The Border Layout Manager

---

• The Border Layout Manager

  • Using the Border Layout manager:

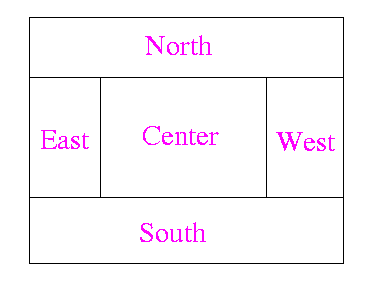

    The Border Layout manager allows you to specify the placement of a component/container(JPanel) to be at one of these locations: Only one component can be placed at one coordinate (All components are placed --- but only last component will be displayed) Note: A JPanel with other GUI components added is counted as one component Common practice: First place the GUI components into a JPanel Then place the finished JPanel at a coordinate

    ---

    ---

  • Example: using Border Layout in a JPanel:

    import java.awt.*; import javax.swing.*; public class Layout3 { public static void main(String[] args) { JFrame f = new JFrame("Border Layout"); // ------------------------------------------------------- // Make Panel with 5 button // ------------------------------------------------------- JPanel MyPanel1 = new JPanel(); MyPanel1.setLayout( new BorderLayout() ); JButton x1 = new JButton("I am x1"); JButton x2 = new JButton("I am x2"); JButton x3 = new JButton("I am x3"); JButton x4 = new JButton("I am x4"); JButton x5 = new JButton("I am x5"); MyPanel1.add(x1, "North"); MyPanel1.add(x2, "South"); MyPanel1.add(x3, "East"); MyPanel1.add(x4, "West"); MyPanel1.add(x5, "Center"); f.getContentPane().add( MyPanel1, "North"); // Add MyPanel1 to North // ----------------------------------------------------------- // Make another Panel with 5 button // ----------------------------------------------------------- JPanel MyPanel2 = new JPanel(); MyPanel2.setLayout( new BorderLayout() ); JButton x6 = new JButton("I am x6"); JButton x7 = new JButton("I am x7"); JButton x8 = new JButton("I am x8"); JButton x9 = new JButton("I am x9"); JButton x10 = new JButton("I am x10"); MyPanel2.add(x6, "North"); MyPanel2.add(x7, "South"); MyPanel2.add(x8, "East"); MyPanel2.add(x9, "West"); MyPanel2.add(x10, "Center"); f.getContentPane().add( MyPanel2, "South"); // Paste MyPanel2 to South // f.getContentPane().add(MyPanel2, "Center"); // Paste MyPanel2 to Center f.setSize(400, 300); f.setVisible(true); } }

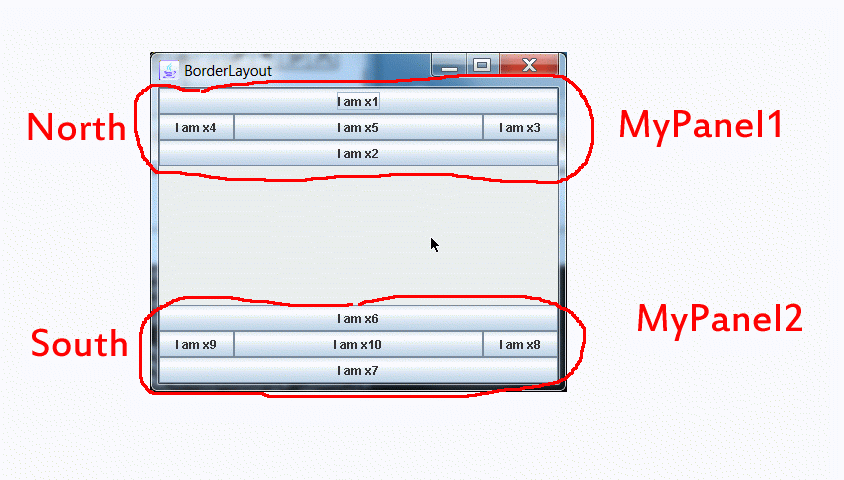

    Result:

    ---

    ---

  • Example Program: (Demo above code)
    • Prog file: click here

    ---

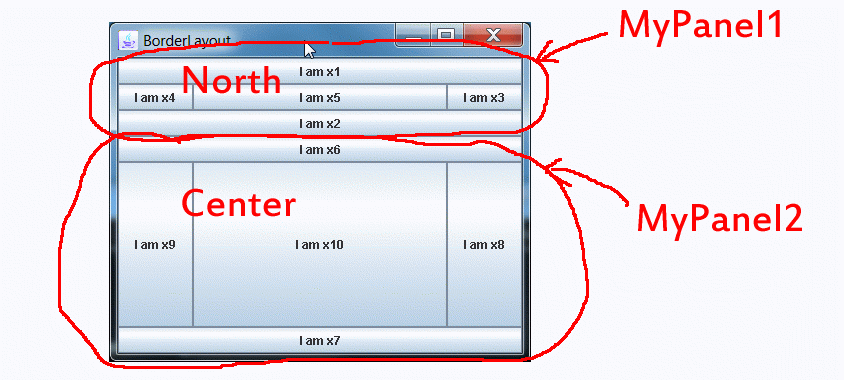

  • If we place MyPanel2 in the Center position, we will get the following looking GUI:
