What is SQL ?



  • Relational Database:

      • A collection of data that are organized as a set of tables (= relations) (and can be accessed electronically through a computer system)

      • Is the most popular type of databases

  • Relational databases are accessed using the Structured Query Language, a.k.a.: SQL

  • SQL is a (so called) 4th generation programming language (or 4GL)



1st generation programming language (ca. 1945 - ca. 1949)



  • Programmers enters the program instructions as binary numbers by flipping switches:

2nd generation programming language (ca. 1949 - ca. 1957)

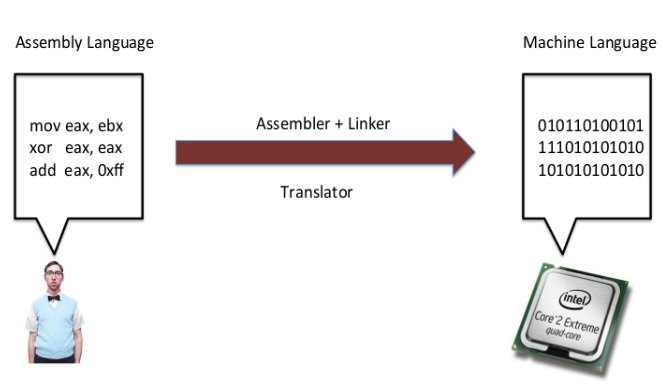

  • Programmers write program instructions in (so called) Assembler codes:

  • A (simple) computer program called the Assembler translates the assembler codes into binary machine instructions

3rd generation programming language (ca. 1957 - today)

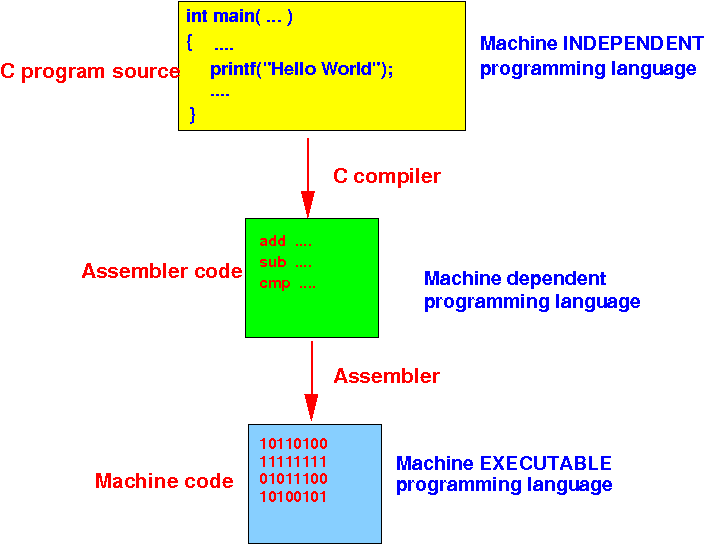

  • Programmers write program instructions in a High Level Programming Language (such as C, Java, etc):

  • A (complex) computer program called the Compiler translates the program into assembler codes

4th generation programming language (ca. 1972) - e.g.: SQL



  • 4th generation programming language is more abstract than a 3rd generation programming language

    Example:

       SELECT dname, count(*)
 FROM   department join employee on dnumber= dno
 GROUP BY dname

  • 4th generation programming language is descriptive

    Language is used to describe what the result must be.

Overview of SQL



  • SQL allows the user to:

      • Create a database

      • Define the structure of the relations (= tables) in the database

      • Insert tuples (= rows of data) into relations (= tables)

      • Update tuples (= rows of data) in relations (= tables)

      • Make queries on the data stored in the database

  • Which type of request do you think is the most frequent one ?

Overview of SQL



  • SQL allows the user to:

      • Create a database

      • Define the structure of the relations (= tables) in the database

      • Insert tuples (= rows of data) into relations (= tables)

      • Update tuples (= rows of data) in relations (= tables)

      • Make queries on the data stored in the database

  • Queries are the most frequent requests to a RDBMS !!!

The CREATE DATABASE command of SQL



  • SQL command to create a database:

       create database databaseName

  • Here's how I created my companyDB database in MySQL:

       create database companyDB

The CREATE TABLE command of SQL

  • SQL commands to define a table (= relation) in a database is:

       use databaseName       (once only)

 create table tableName
 (attribute-name-1  data-type1,
  attribute-name-2  data-type2,
  ....
 )

  • Common data types used:

      • varchar(n): string of maximum of n characters
      • int: integer (whole number)
      • decimal(n,m): decimal number with n digits and m decimal places
      • date: a calendar date value (e.g.: 2019-8-15)

The CREATE TABLE command of SQL

  • Here's how I defined the employee table used to store employee information:

       use companyDB          (once only)

 create table employee
 (fname    varchar(10),
  minit    varchar(1),
  lname    varchar(8),
  ssn      varchar(9),
  bdate    date,
  address  varchar(25),
  sex      varchar(1),
  salary   decimal(7,2),
  superssn varchar(9),
  dno      int);

The INSERT command of SQL

  • SQL command to insert tuples into a table in a database:

       use databaseName;          (once only)

 insert into tableName
 values (value1, value2, ... )

  • Here's how I inserted the employee John Smith into the employee table:

       use database companyDB;

 insert into employee
 values ('John', 'B', 'Smith' ,'123456789' ,'1987-12-1',
  '731 Fondren, Houston, TX', 'M', 30000, '333445555', 5);

The SELECT command in SQL



  • The SELECT command in SQL is used to make query requests to a RDBMS

  • The basic SELECT command is as follows:

         select <list of attributes>
   from   <list of relations>
  [where  <tuple-condition>]       ([ ] means: optional)

  • Effect:

      • Retrieves the specified attribute values from tuples in the specified relations that satisfy the tuple-condition

Example of SELECT commands with no condition



  • Retrieve the first name, middle initial and last name of all employees



Example of SELECT commands with no condition



  • Retrieve the first name, middle initial and last name of all employees

       select fname, minit, lname
 from   employee



Example of SELECT commands with no condition



  • Retrieve all information of all employees

  • Note: * means all columns

Example of SELECT commands with no condition



  • Retrieve all information of all employees

       select *
 from   employee

  • Note: * means all columns

Example of SELECT commands with a simple condition



  • Retrieve all information of employees in department #4

Example of SELECT commands with a simple condition



  • Retrieve all information of employees in department #4

       select *
 from   employee
 where  dno = 4

Try these simple queries



  • Find the first and last names of the employees who works in department #5.
     SELECT fname, lname
 FROM   employee
 WHERE  dno=5

  • Find the first and last names of the employees who earn more than $30000.
     SELECT fname, lname
 FROM   employee
 WHERE  salary > 30000

  • Find the first and last names of the employees who work in department #5 and earn more than $30000.
     SELECT salary
 FROM   employee
 WHERE  dno = 5 AND salary > 30000

  • Find the salary of the employee John Smith
     SELECT salary
 FROM   employee
 WHERE  fname='John' AND lname='Smith'

  • Find the first and last names of the employees who were born after 1990.
     SELECT fname, lname
 FROM   employee
 WHERE  year(bdate) > 1990

    (year(date) returns the year of a date.)

The result type of a SELECT command in SQL



  • The type of the result of a SELECT command is a bag of tuples

  • A bag is a collection that may contain duplicates

    Comment:

      • This choice is based on efficiency

      • It take extra work (and time) to remove duplicates from the result

Eliminating duplicates in result: the DISTINCT keyword



  • SQL will not remove duplicate values in the result:

       select dno
 from employee

  • You can use the keyword distinct to remove duplicates:

       select distinct dno
 from employee

Ordering the result: the ORDER BY clause

  • SQL will not sort the the result set by default:

       select *
 from employee

  • You can use the order by clause at the end of the query to sort by one or more attribute(s) in the result set:

       select *
 from employee
 order by dno, lname, fname

Limiting the # rows in the result: the LIMIT clause

  • Returning a large number of records can impact performance.

       select *
 from employee   (Problem if there is a large # employees)

  • You can use the limit clause at the end of the query to limit the number of records (rows) shown in the output:

       select *
 from employee
 limit 4

  • The limit clause must follow the order by clause

Note: case-sensitivity

  • SQL keywords are not case-sensitive

      • However: people often use upper case for keywords

  • Table and attribute names are system dependent !!!

      • In MySQL, table names are case-sensitive in Ubuntu Linux !

      • However, attribute names are case-insensitive in Ubuntu Linux !

  • Data stored in tables are also system dependent !!!

      • In MySQL, data stored in tables are case-insensitive in Ubuntu Linux

Note: you can change the settings of the case-sensitivities in mySQL - see mySQL Documentation
