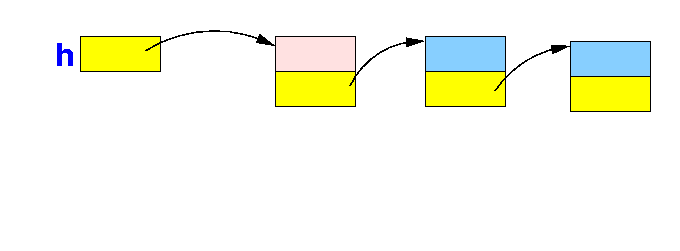

Review: deleting the element at the head of a linked list

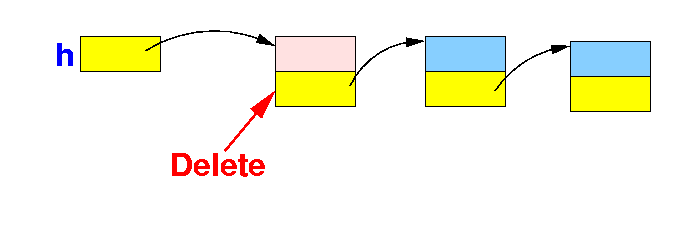

Delete the list element at the head (= start) of the linked list at h and return the new list
Input:

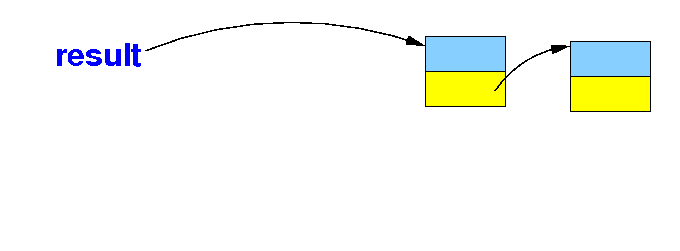

Output:

Review: delete at head algorithm in Java

In CS171, you learned the following delete at head algorithm in Java:

class List // Class definition included to use 1 program file { int value; List next; } public class insert { public static List delete (List h) { if (h != null) return h.next; // Return new list that starts at 2nd elem else return null; } ... // Other code omitted for brevity }

To write a C function, you need to express the algorithm (a concept !) with C syntax

Review: delete at head algorithm in Java

The class definition becomes a struct definition in C:

struct List // Struct definition included to use 1 program file { int value; struct List *next; // Reference variable } public class insert { public static List delete (List h) { if (h != null) return h.next; // Return new list that starts at 2nd elem else return null; } ... // Other code omitted for brevity }

Next: public class ....

Review: delete at head algorithm in Java

There is no class construct in C:

struct List // Struct definition included to use 1 program file { int value; struct List *next; // Reference variable } public static List delete (List h) { if (h != null) return h.next; // Return new list that starts at 2nd elem else return null; } ... // Other code omitted for brevity

Next: the parameters and return value

Review: delete at head algorithm in Java

The data type of the parameters and return value are both: struct List *

struct List // Struct definition included to use 1 program file { int value; struct List *next; // Reference variable } struct List *delete (struct List *h) { if (h != null) return h.next; // Return new list that starts at 2nd elem else return null; } ... // Other code omitted for brevity

Next: the expression h.next

Review: delete at head algorithm in Java

The Java expression h.next expressed in C is (*h).next or h->next:

struct List // Struct definition included to use 1 program file { int value; struct List *next; // Reference variable } struct List *delete (struct List *h) { if (h != null) return h->next; // Return new list that starts at 2nd elem else return null; } ... // Other code omitted for brevity

Next: the expression null

Review: delete at head algorithm in Java

C uses NULL for the null value in Java:

struct List // Struct definition included to use 1 program file { int value; struct List *next; // Reference variable } struct List *delete (struct List *h) { if (h != NULL) return h->next; // Return new list that starts at 2nd elem else return NULL; } ... // Other code omitted for brevity

Done.... wait.... done ?

The delete at head program in Java

class List // Class included to make 1 program file { int value; List next; } public class delete { /* ==================================================== delete(h): delete the first elem from the list h return new list ==================================================== */ public static List delete (List h) { if ( h != null ) return (h.next); // Return new list that starts at h.next else return null; } public static void main(String[] args) { List head = null; // Insert 10 elements for (int i = 1; i <= 10; i++) { List e = new List(); e.value = i; head = insert(head, e); // Insert i at head print(head); } // Delete 10 elements for (int i = 1; i <= 10; i++) { head = delete(head); // Delete at head print(head); } } public static List insert (List h, List e) { e.next = h; return e; // Return new list that starts at e } // Print the list public static void print(List h) { while (h != null) { System.out.printf("%d ", h.value); h = h.next; } System.out.printf("\n\n"); } }

DEMO: demo/C/Linked-list/delete.java

The delete at head program in C

I will "convert" the program in class as a demo

#include <stdio.h> #include <stdlib.h> struct List { int value; struct List *next; }; void print(struct List *h); // Declaration struct List *insert (struct List *h, struct List *e); /* ==================================================== delete(h): delete the first elem from the list h return new list ==================================================== */ struct List *delete (struct List *h) { if ( h != NULL) return h->next; else return NULL; } int main(int argc, char *argv[]) { struct List *head = NULL; // Insert for (int i = 1; i <= 10; i++) { struct List *e = malloc( sizeof(struct List) ) ; e->value = i; head = insert(head, e); // Insert i at head print(head); } // Delete for (int i = 1; i <= 10; i++) { head = delete(head); // Delete at head print(head); } } // Insert at head struct List *insert (struct List *h, struct List *e) { e->next = h; return e; // Return new list that starts at e } // Print the list void print(struct List *h) { while (h != NULL) { printf("%d ", h->value); h = h->next; } printf("\n\n"); }

The out-of-memory error when you generate too much garbage

Now run this modified program using (ulimit -v 50000; a.out > err)

int main(int argc, char *argv[]) { struct List *head = NULL; int c = 0; while(1) // Infinite loop... { printf("%d\n", ++c); // Keep a count // Insert for (int i = 1; i <= 10; i++) { struct List *e = malloc( sizeof(struct List) ) ; e->value = i; head = insert(head, e); // Insert i at head print(head); } // Delete for (int i = 1; i <= 10; i++) { head = delete(head); // Delete at head print(head); } } }

DEMO: demo/C/Linked-list/delete2.c

The problem with the delete( ) function

When you delete a list element from a list:

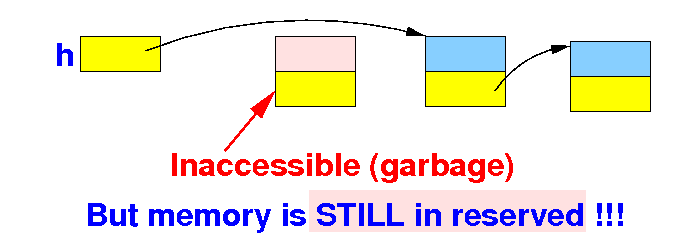

The deleted element becomes inaccessible (a.k.a.: garbage):
In Java, a garbage collection mechanism will reclaim the innaccessible memory
In C, too much garbage will cause a out-of-(free)-memory error !

The correct way to delete a list element in C

The original delete( ) function is:

struct List *delete (struct List *h) { if (h != NULL) { // Delete the element at h return h->next; } else return NULL; }

The element at h needs to be de-allocated ("unreserved")

The correct way to delete a list element in C

We must de-allocate the head list element with free(h):

struct List *delete (struct List *h) { if (h != NULL) { // Delete the element at h free(h); // De-allocate the deleted element return h->next; } else return NULL; }

However: free(h) may affect the variable h->next (= the return value !)

The correct way to delete a list element in C

We save the return value first:

struct List *delete (struct List *h) { if (h != NULL) { // Delete the element at h struct List *retVal = h->next; free(h); // De-allocate the deleted element return retVal; } else return NULL; }

This version of delete() will not generate garbage !

DEMO: demo/C/Linked-list/delete3.c
