Linear Hashing

The problem with Extensible Hashing
- Main disadvantage of Extensible Hashing:

Overview of Linear Hashing (and to contrast with Extensible Hashing)

Properties of the Linear Hashing technique:

The growth rate of the bucket array will be linear (hence its name)
The decision to increase the size of the bucket array is flexible....
A commonly used criteria is:
Linear hashing uses overflow buckets .....

Modifying the bucket doubling technique

Recall the bucket doubling technique used in Extensible Hashing:

Before doubling the logical hash table:

After doubling the logical hash table:

Notice:

We increased the logical hash table size to implement:
Graphically:

Idea:

If a hash key maps to an old (existing) physical hash entry:

How to re-use the existing block pointers to double the (logical) hash table:

Define the following function:

Suffix-1( x ) = x − 2ⁱ where i = ⌊ log₂( n ) ⌋

What is the Suffix-1( ) function:

x (bin) | i = ⌊ log₂( n ) ⌋ | 2ⁱ | x - 2ⁱ -----------+----------------------+------+---------- 2 ( 10) | ⌊ log₂( 2) ⌋ = 1 | 2 | 0 ( 0) 3 ( 11) | ⌊ log₂( 3) ⌋ = 1 | 2 | 1 ( 1) 4 ( 100) | ⌊ log₂( 4) ⌋ = 2 | 4 | 0 ( 00) 5 ( 101) | ⌊ log₂( 5) ⌋ = 2 | 4 | 1 ( 01) 6 ( 110) | ⌊ log₂( 6) ⌋ = 2 | 4 | 2 ( 10) 7 ( 111) | ⌊ log₂( 7) ⌋ = 2 | 4 | 3 ( 11) 8 (1000) | ⌊ log₂( 8) ⌋ = 3 | 8 | 0 ( 00) 9 (1001) | ⌊ log₂( 9) ⌋ = 3 | 8 | 1 ( 01) 10 (1010) | ⌊ log₂(10) ⌋ = 3 | 8 | 2 ( 10) 11 (1011) | ⌊ log₂(11) ⌋ = 3 | 8 | 3 ( 11) 12 (1100) | ⌊ log₂(12) ⌋ = 3 | 8 | 4 (100) 13 (1101) | ⌊ log₂(13) ⌋ = 3 | 8 | 5 (101) 14 (1110) | ⌊ log₂(14) ⌋ = 3 | 8 | 6 (110) 15 (1111) | ⌊ log₂(15) ⌋ = 3 | 8 | 7 (111)

Conclussion:

Suffix-1(x) returns the suffix of x after removing the leading 1 bit in x

We can use the Suffix-1( ) function to map between logical hash buckets and physical hash buckets:
So we don't need to use a block pointer for the logical hash index x if:

Increasing the # buckets gradually

Consider the following 4 buckets:

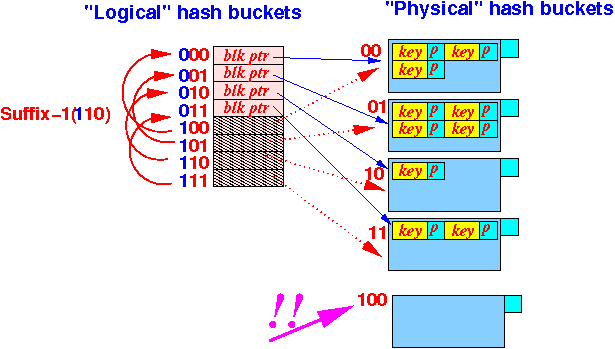

We double the number of logical hash buckets by using the Suffix-1( ) function:
Fact:

We can (gradually) add a new physical hash bucket as follows:

Allocate a new disk block (to store the hash keys):

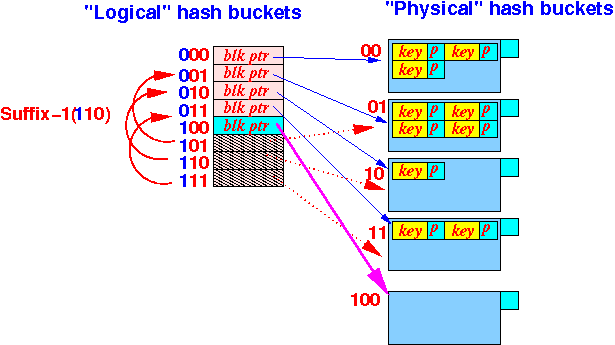

Allocate a new Bucket pointer in the array and make it point to the new hask bucket (disk block):

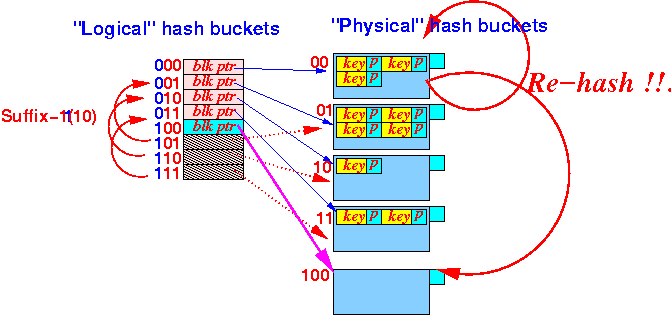

And: we must re-hash all keys in the "related" bucket:

Notice that:

We still use the Suffix-1( ) to map the "ghost" (= non-existant) buckets !!!
(To allow us to find the hash keys --- just like in Extensible hashing !!!)

Parameters used in Linear hashing

Parameters used in Linear Hashing:

n = the number of buckets that is currently in use

Note:

The n buckets are number as:

0, 1, 2, .... , (n−1) // In binary

The derived parameter i:

i = ⌈ log₂( n ) ⌉

The value of i changes with n as follows:

(#buckets) (largest bucket index) n n-1 (binary) i = ⌈log(n)⌉ --------------------------------------------------- 2 1 ( 1) 1 ^ 3 2 ( 10) 2 4 3 ( 11) 2 ^^ 5 4 ( 100) 3 6 5 ( 101) 3 bits 7 6 ( 101) 3 8 7 ( 111) 3 ^^^ 9 8 ( 1000) 4 10 9 ( 1001) 4 bits 11 10 ( 1010) 4 ^^^^ ....
Observation: The range of hash bucket index = [0 .. (n−1)] In order to express (n−1) as a binary number, you need i bits

In other words:

i = number of bits used in the RandomNumGen( ) to hash into a hash table of size = n

Linear Hashing technique

Hash function used in Linear Hashing:
Hash index:
A hash bucket in Linear Hashing is a
chain of disk blocks:
Important Note:
Example:

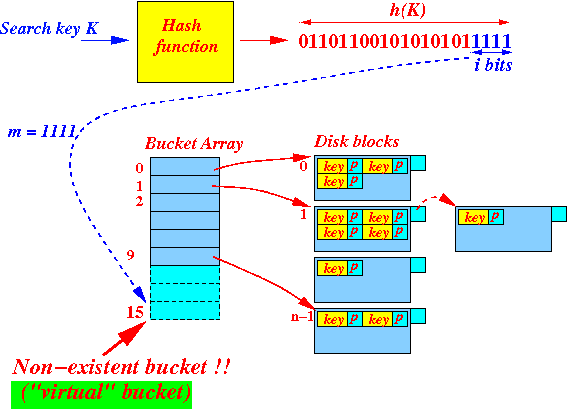

Mapping "ghost" buckets:

We use the Suffix-1( ) mapping function to map a ghost bucket:

if ( x ≤ (n − 1) ) { Use: Bucket[ x ] to find the physical hash bucket } else { // "ghost" bucket !! Use: Bucket[ Suffix-1(x) ] to find the physical hash bucket }

Lookup Algorithm of Linear Hashing

Parameter: n = current number of buckets in use i = ⌈ log(n) ⌉ Lookup( x ) { k = hash(x); // General hash function value m = last i bits of k; // Linear hash function value if ( m ≤ n−1 ) { /* ========================================= m is a "real" bucket ========================================= */ Search (x, recordPtr(x)) in bucket m (including the overflow block); } else { /* ========================================= m is a "ghost" bucket Use Suffix-1(m) to map !! ========================================= */ m' = Suffix-1(m); // I.e.: m = 1xxxxxxxxxx // m' = 0xxxxxxxxxx // Note: m' is a "real" bucket !!! Search (x, recordPtr(x)) in bucket m' (including the overflow block); } }

Increasing the physical hash table size in Linear hashing

Fact:

We need a policy to decide if we need to increase the size physical hash table
I.e.:

Commonly used criteria to increase the number of buckets n in Linear Hashing:

if ( Avg occupancy of a bucket > τ ) { n++; // Increase # physical buckets }

How to determine average occupancy of a bucket:

We need the following parameters:

n = current number of buckets in use r = current number of search keys stored in the buckets γ = block size (# search keys that can be stored in 1 block)

Computation:

Max # search keys in 1 block = γ Max # search keys in n blocks = n × γ We have a total of: r search keys in n blocks r Avg occupancy = -------- n × γ

Example:

Increase criteria in Linear hashing:

r if ( -------- > τ ) n × γ { n++; }

Insert Algorithm of the Linear Hashing technique

Insert Algorithm:

Parameter: n = current number of buckets in use i = ⌈ log(n) ⌉ (= # bits used in RandomNumGen( x ) ) Insert( x , recordPtr(x) ) { k = h(x); // h(x) = RandomNumGen(x) m = k % 2ⁱ ; // Last i bits = Linear hash function value /* ----------------------------------------------- Insert (x, recordPtr(x)) in "bucket m" ----------------------------------------------- */ if ( m ≤ n−1 ) { /* ========================================= m is a "real" bucket ========================================= */ Insert (x, recordPtr(x)) into bucket m (if overflow, use an overflow block) } else { /* ========================================= m is a "ghost" bucket ========================================= */ m' = Suffix-1(m); // I.e.: m = 1xxxxxxxxxx // m' = 0xxxxxxxxxx // Note: m' is for sure a "real" bucket !!! Insert (x, recordPtr(x)) into bucket m' (if overflow, use an overflow block) } /* ============================================= Check if we need to adjust n ============================================= */ if ( r/(n*γ) > τ ) { Add bucket n; // Now bucket n is not longer a ghost bucket !!! n' = Suffix-1(n); /* ================================================ Note: Bucket[n'] was also used to store keys that were hashed into the "ghost" bucket n !!! We must re-hash all keys in Bucket[n'] into: Bucket[n'] and Bucket[n] ================================================ */ j = ⌈ log(n+1) ⌉ ; // The range of hash bucket index is now [0..n] // j = number of binary digits to express n for ( every search key k ∈ bucket n' ) do { if ( (last j bits of k) == n ) { move search key k into the new bucket n; } } } }

Example Linear Hashing

Parameters:

Max # search keys in 1 block (γ) = 2 Threshold avg occupance (τ) = 0.85

Initial State:

Average occupancy:

r 3 ------- = ------- = 0.75 (< 0.85) n × γ 2 × 2

Insert search key K such that h(K) = 0101

Insert 0101:
Result:

Average occupancy:

r 4 ------- = ------- = 1 > τ (0.85) n × γ 2 × 2

We must add an new bucket:

Add bucket 2 (= 10 (binary)):

Re-hash the search keys from

/-----> Bucket 00 Bucket 0 --- \-----> Bucket 10

Graphically:

Result:

Average occupancy:

r 4 ------- = ------- = 0.6666 ≤ τ (0.85) n × γ 3 × 2

Notice that:

n = 3 (changed) !!!
i = 2 (changed) !!!

We can find 1111 as follows:

Explanation:

1111 will lead to the bucket 11 (using the last i (= 2) bits) which is a "ghost" bucket
The search algorithm will use the real bucket 01 instead !!!

Continue example....

Insert search key K such that h(K) = 0001
Average occupancy:
No need too add another bucket.....

Continue example....

Insert search key K such that h(K) = 0111

Insert 0111:
Result:

Average occupancy:

r 6 ------- = ------- = 1 > τ (0.85) n × γ 3 × 2

We must add an new bucket:

Add bucket 3 (= 11 (binary)):

Re-hash search keys from:

/----> Bucket 01 Bucket 01 --- \----> Bucket 11

Graphically:

Result:

Average occupancy:

r 6 ------- = ------- = 0.75 ≤ τ (0.85) n × γ 4 × 2

Notice that:

n = 4 (changed) !!!
Every search key in the Linear Hash table is now identified by their last 2 bits:

Deleting from a Linear Hashing Table

Delete was not discussed in the text book

But if you understand how it works, you can easily devise an algorithm to reduce the number of buckets

Hint:

When a bucket is delete, it becomes a "ghost" bucket
If the bucket contains some search keys, you will need to move these search keys....
Where do you move them ???
