Weighted Fair Queueing: a packetized approximation for FFS/GP

Packetized Approximation of FFS
- Fact:
- Problem with FFS:
- Preserving packet structure while achieving best possible fairness:
- This is the gist of the Weighted Fair Queueing method
- Major contribution:
Nomenclature....
- The algorithm presented in the paper is called: Packet-by-packet GPS in Parekh's paper
- But it is commonly known as the Weighted Fair Queueing (WFQ) method.

Definitions

Packet transmission/reception:

Packet received = A packet has been received (arrived) if the last bit of the packet has been received (arrived)
Packet transmitted = A packet is considered transmitted if the last bit of the packet has transmitted
Packet finish time = The packet finish time is the time that a packet has been transmitted
(I.e., the packet finish time is the time when the last bit of the packet has been transmitted)

Flows and their reservations:

C = the transmission capacity of the communication link
b_f = the bandwidth guarantee for flow f (= reservation)
(I am using the notations used in the paper)
Normalized weight (guarantee) w_f:
l(p_f) = the length (#bytes) of packet p_f of flow f

Normalized packet length of a packet p_f:

l(p_f) Normalized Packet Length = ------ C

The Weight Fair Queueing Scheduler

Operation of the WFQ scheduler (or Packet GPS (PGPS)):

Packet transmission:
Packet selection for transmission:

Note:

Once a packet transmission has started, the packet transmission cannot be aborted

Consequence:

It is possible that after the transmission of a packet p_f, a packet p_g arrives that has a smaller finish time under FFS

Example:

packet p_f consists of 100 bytes
packet p_g consists of 10 bytes
w_f = w_g
Order of arrival:
Under FFS: packet p_g would finish before packet p_f
However under WFQ:

Operation of the WFQ Scheduler - Example 1

The flows and their weight:

Packet arrival times and Normalized Packet lengths:

Flow 1: FLow 2: Arrival Time Packet length Arrival Time Packet length Packet 1: 1 1 0 3 Packet 2: 2 1 5 2 Packet 3: 3 2 9 2 Packet 4: 11 2 - -

Recall the packet finish times under the FFS server:

Scheduling Work sheet

(When a packet arrives at time t, we assume that it arrives a little later - at t + ε)

Time	Event: Arrival (length)	Event: Departure (real finish time)	Packets in queue (FFS finish time) (packet length)	Transmitting packet (real finish time)
0	[flow 2, packet 1 (3)]	...	...	[flow 2, packet 1 (3)]
1	[flow 1, packet 1 (1)]	...	[flow 1, packet 1 (3) (1)]	...
2	[flow 1, packet 2 (1)]	...	[flow 1, packet 1 (3) (1)] [flow 1, packet 2 (5) (1)]	...
3	[flow 1, packet 3 (2)]	[flow 2, packet 1 (3)]	[flow 1, packet 2 (5) (1)] [flow 1, packet 3 (9) (2)]	[flow 1, packet 1 (4)]
4	...	[flow 1, packet 1 (4)]	[flow 1, packet 3 (9) (2)]	[flow 1, packet 2 (5)]
5	[flow 2, packet 2 (2)]	[flow 1, packet 2 (5)]	[flow 2, packet 2 (9) (2)]	[flow 1, packet 3 (7)]
7	...	[flow 1, packet 3 (7)]	(empty)	[flow 2, packet 2 (9)]
9	[flow 2, packet 3 (2)]	[flow 2, packet 2 (9)]	...	[flow 2, packet 3 (11)]
11	[flow 1, packet 4 (2)]	[flow 2, packet 3 (11)]	...	[flow 1, packet 4 (13)]
13	...	[flow 1, packet 4 (13)]	...	...

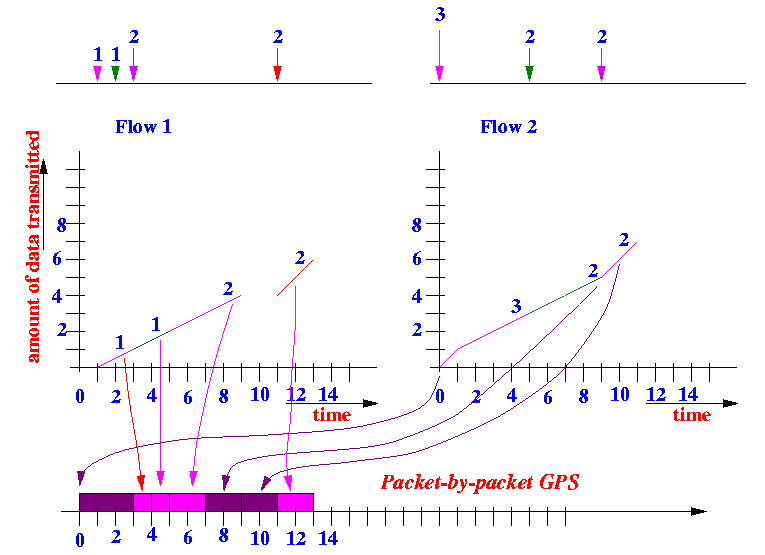

Summary of the scheduling order by the WFQ scheduler:

Difference in Finish Times between FFS and WFQ servers

Packet	FFS Finish Time	WFS Finish Time	Difference (WFS - FFS)
Flow 1, Packet 1	3	4	1
Flow 1, Packet 2	5	5	0
Flow 1, Packet 3	9	7	-2
Flow 1, Packet 4	13	13	0
Flow 2, Packet 1	5	3	-2
Flow 2, Packet 2	9	9	0
Flow 2, Packet 3	11	11	0

Operation of the WFQ Scheduler - Example 2

Let us work out a second example on how WFQ schedule packets for transmission.
The weight are changed to following:
- flow 1: w₁ = 1/3
- flow 2: w₁ = 2/3

The Packet arrival times and Normalized Packet lengths are unchanged:

Flow 1: FLow 2: Arrival Time Packet length Arrival Time Packet length Packet 1: 1 1 0 3 Packet 2: 2 1 5 2 Packet 3: 3 2 9 2 Packet 4: 11 2 - -

We have seen that the finish times of each packet when they are transmitted by a FFS server are as follows:

Flow 1: FLow 2: Arrival Time Finish Time Arrival Time Finish Time Packet 1: 1 4 0 4 Packet 2: 2 5 5 8 Packet 3: 3 9 9 11 Packet 4: 11 13 - -

Scheduling Work sheet

Time	Arrival (length)	Departure (real finish time)	Queued Packets (FFS finish time) (packet length)	Scheduled packet (real finish time)
0	[flow 2, packet 1 (3)]	...	[flow 2, packet 1 (4) (3)]	[flow 2, packet 1 (3)]
1	[flow 1, packet 1 (1)]	...	[flow 2, packet 1 (4) (3)] [flow 1, packet 1 (4) (1)]	...
2	[flow 1, packet 2 (1)]	...	[flow 2, packet 1 (4) (3)] [flow 1, packet 1 (4) (1)] [flow 1, packet 2 (5) (1)]	...
3	[flow 1, packet 3 (2)]	[flow 2, packet 1 (3)]	[flow 1, packet 1 (4) (1)] [flow 1, packet 2 (5) (1)] [flow 1, packet 3 (9) (2)]	[flow 1, packet 1 (4)]
4	...	[flow 1, packet 1 (4)]	[flow 1, packet 2 (5) (1)] [flow 1, packet 3 (9) (2)]	[flow 1, packet 2 (5)]
5	[flow 2, packet 2 (2)]	[flow 1, packet 2 (5)]	[flow 2, packet 2 (8) (2)] [flow 1, packet 3 (9) (2)]	[flow 2, packet 2 (7)]
7	...	[flow 2, packet 2 (7)]	[flow 1, packet 3 (9) (2)]	[flow 1, packet 3 (9)]
9	[flow 2, packet 3 (2)]	[flow 1, packet 3 (9)]	[flow 2, packet 3 (11) (2)]	[flow 2, packet 3 (11)]
11	[flow 1, packet 4 (2)]	[flow 2, packet 3 (11)]	[flow 1, packet 4 (13) (2)]	[flow 1, packet 4 (13)]
13	...	[flow 1, packet 4 (13)]	...	...

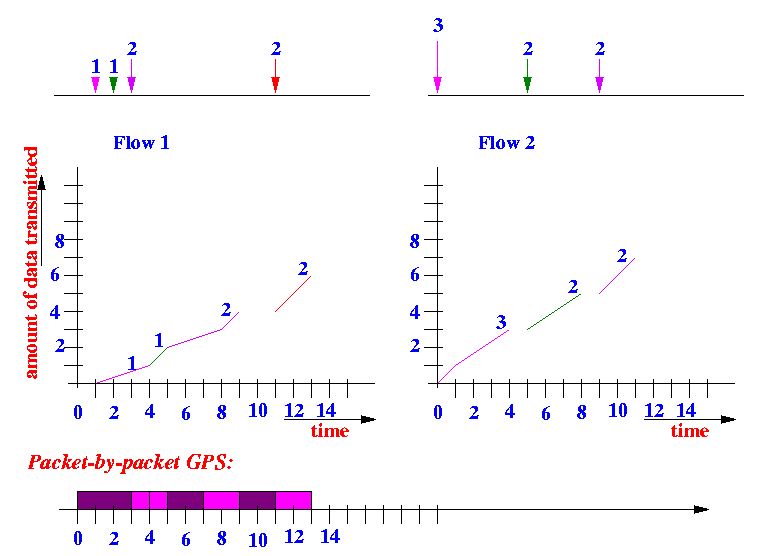

Summary of the scheduling order by the WFQ scheduler:

Difference in Finish Times between FFS and WFQ servers

Packet	FFS Finish Time	WFS Finish Time	Difference (WFS - FFS)
Flow 1, Packet 1	4	4	0
Flow 1, Packet 2	5	5	0
Flow 1, Packet 3	9	9	0
Flow 1, Packet 4	13	13	0
Flow 2, Packet 1	4	3	-1
Flow 2, Packet 2	8	7	-1
Flow 2, Packet 3	11	11	0

Summary Conclusions

What we can learn from the examples:

WFQ preserves the integrity of the packets
WFQ approximates the operation of the FFS scheduler very closely

In fact, Theorems 1 and 2 of Parekh's paper states:

The difference in the service received by any flow using WFQ is:

In other words:

If a packet p finishes service at time t in FFS, then packet p will finish service at a time ≤ (t + max. packet length)

Note:

In the examples above, we found that WFQ is ≤ 1 time unit behind FFS.
The max length of a packet is 3 units
According the Theorem 2 of Parekh's paper, the service provided by WFQ will be ≤ 3 time units behind
The results confirms this Theorem.

Problems with the FFS-emulation....
- In the above examples, we saw that to schedule packets in WFQ, we must:
  It is very complex to compute the finish times in FFS
- Major contribution in Parekh's paper:
  (This simpler scheme is still quite computational intensive. )
An (implementable) algorithm for the FFS server

Virtual Time

Virtual time:

The WFQ implementation uses a virtual time system which is a very ingeneous "time keeping mechanism" for the FFS server
The virtual clock keeps tracks of the progress of the packet transmissions in the FFS server
How to use the virtual clock system:

What is virtual time:

A virtual time system is a duration measuring system that is non-decreasing
The virtual clock begins at virtual time 0 (zero)
The virtual clock is non-decreasing (i.e., you cannot "go back" in time)
There is a correspondence function between real time (what we experience) and the virtual time (defined in WFQ)
This correspondence function will be explained later)

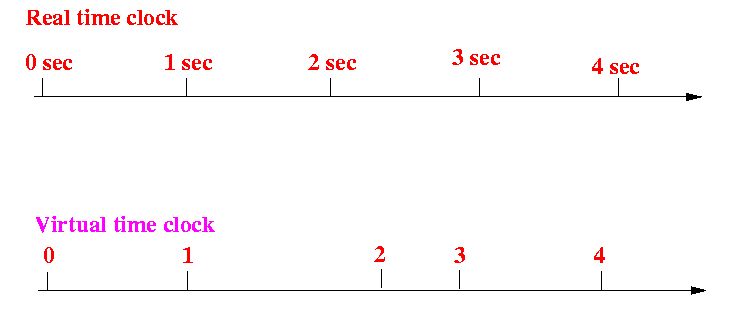

Difference between real time and virtual time:

In the real time system, the rate of progress (i.e., the speed of the real time clock) is contant
In the virtual time system, the rate of progress (i.e., the speed of the virtual time clock) is variable !!!

Example:

Reason to create the virtual time concept:

The clock speed of the virtual time system adapts to the service rate of packets
The clock speed of the virtual time system will adjust in such a way that:
(If you are a fan of Einstein's relativity theory (or had the opportunity to travel near the speed of light), you will delight in the following discussion.... )

Impritant fact to keep in mind:

The Virtual Time System of WFQ

Definitions and notations:

t = the real time (the value of the wall clock)
VT(t) = the virtual time value at (real) time t
VT(t) is a function that maps the real time t to the virtual time VT(t)
Initialization: t = 0 and V(0) = 0
w_j = the weight (reservation) of flow j
p_jⁱ = the i^th packet of flow j

Virtual finish time of a packet:

V(p_jⁱ) = the virtual finish time of packet p_jⁱ
The virtual finish time V(p_jⁱ) is also known as the time stamp of the packet p_jⁱ

Fact to be established later:

V(p_jⁱ) = the virtual time value when the packet p_jⁱ will finish its transmission
In other words:
Furthermore, we can compute V(p_jⁱ) when packet p_jⁱ arrives !!!
(It's like predicting the future :-))

Initialization:
Note:
Virtual flow finish time of flow j = virtual finish time of the last packet of flow j

We will discuss the time stamp calculation soon...

Components of Parekh's virtual time system:

A method to assign Time Stamps (virtual finish time values) to an arriving packet
A method to update the Virtual Clock as a function of the real time clock t
This function will track packet transmission and "simulate" the FFS server

We will first look at an example that help us understand Parekh's Virtual CLock scheme.

The speed of the virtual clock when all flows are backlogged

When all flows are backlogged

VT(t) = t

I.e.: virtual time run at the same rate (speed) as real time

Example:

speed of virtual clock = 1 -------------------------------> V(t) = 1 × t |-----------|-----------|----- ..... ----> virtual time (VT(t)) 0 1 2 ^ ^ ^ | | | | | | |-----------|-----------|----- ..... ----> real time (t) t=0 t=1 t=2

Virtual packet length

Virtual packet length:

The virtual packet length determines the amount of virtual time that is needed to transmit the packet
Example:

We will use an example to introduce the concept of virtual packet length
Flows:

Scenario 1:

At t = 0, a packet of length 1 of flow f₁ arrives
At t = 0, a packet of length 1 of flow f₂ arrives

Note:

All flows are backlogged
Therefore: VT(t) = t

Service by a FFS server:

speed of virtual clock = 1 -------------------------------> V(t) = 1 × t |-----------|-----------|----- ..... ------> virtual time 0 1 2 p₁¹ finished |<--------------------->| virtual packet length(p₁¹) = 2 p₂¹ finished |<--------------------->| virtual packet length(p₂¹) = 2 |-----------|-----------|----- ..... ------> real time 0 1 2

Observation:

In a fully loaded FFS system (when every flow is backlogged):
In general: in a fully loaded FFS system (when every flow is backlogged):

Definition: "virtual packet length"

Packet length L Virtual Packet length = ---------------- = --- Weight of flow w

Meaning of "virtual packet length":

The virtual packet length (L/w) = the amount of virtual time needed to transmit a packet when:

The ingenious idea of Parekh's scheme to use "virtual packet length" to track the progress of the FFS system

Speed of virtual clock when not all flows are backlogged...

Scenario 2:

Virtual packet lengths:

Virtual packet length(p₁¹) = 1/(0.5) = 2

Service by a FFS server:

Virtual packet length of p₁¹ = 1/0.5 = 2 | V p₁¹ finished |<--------->| V |-----------|-----------|----- ..... 0 1 2

Observation:

Virtual packet length of p₁¹ = 2 (virtual) sec
Transmission (real) time of packet p₁¹ = 1 (real) sec
So:
How can we make sense from these two facts ?
(Fact = a true statement)
Hint:

Answer:

speed of the virtual clock = 2 × speed of the real time clock !!!

Illustration:

speed of virtual clock = 2 -------------------------------> V(t) = 2 *times; t V(0)=0 V(1)=2 | | V V |------------------------------------+------ ^ ^ | | t=0 t=1 -------------------------------> speed of real time clock = 1

Conclusion: speed of the virtual clock

When only flow 1 is backlogged (w₁ = 0.5), we must use the virtual function:
to ensure that:

$64,000 questiuon:

How do we set the speed (rate) of the virtual clock so:

Well, we don't have to figure out this question, Parekh did it for his PhD thesis...

We will soon see that: the the virtual clock function is:

t VT(t) = --------------- ∑ w_f ^{f is backlogged}

Recall: Components of Parekh's virtual time system:

A method to assign Time Stamps (virtual finish time values) to an arriving packet
A method to update the Virtual Clock as a function of the real time clock t
This function will track packet transmission and "simulate" the FFS server

We will look at the time stamp assignment algorithm first

Then we will look at how to set the speed of the virtual clock....

The WFQ Time Stamp Assignment algorithm

Recall that the meaning of the value of the time stamp V(p) of a packet p is:

Definitions:

Recall: w_j = the (normalized) weight of flow j
p_jⁱ = the last packet of flow j that has arrived at the router
V(p_jⁱ ) = the time stamp of packet p_jⁱ (= Virtual Finish Time of packet p_jⁱ )
p_jⁱ⁺¹ = the next (new) packet of flow j that will arrive
A_jⁱ⁺¹ = the arrival time (real time) of packet p_jⁱ⁺¹
VT(A_jⁱ⁺¹) = the value of the virtual clock at time A_jⁱ⁺¹ (real time)
V(p_jⁱ⁺¹ ) = the time stamp of packet p_jⁱ⁺¹ (= Virtual Finish Time of packet p_jⁱ⁺¹ )

Problem:

expression

V(p_jⁱ⁺¹)

V(p_jⁱ⁺¹) = VT(x)
where: x = the time (real) when packet p_jⁱ⁺¹ finishes transmission.

Note:

It sounds like that we are trying to predict the future,
and yes, we are predicting the future... :-)
However, we are cheating:
Analogy:

Computing V(p_jⁱ⁺¹) for packet p_jⁱ⁺¹ - two cases:

Case 1: Packet p_jⁱ (last packet of flow j) has been transmitted
Case 2: Packet p_jⁱ (last packet of flow j) has not yet been transmitted

Case 1: p_jⁱ has been when p_jⁱ⁺¹ arrives

Graphically depicted:

p_jⁱ departs | | p_jⁱ⁺¹ arrives | | | | len( p_jⁱ⁺¹)/w_j | |<----------------------->| V V virtual length(p_jⁱ⁺¹) -------------+-----------+----------------------------> time A_jⁱ⁺¹ -------------+-----------+----------------------------> virtual time VT(A_jⁱ⁺¹) ^ | len(p_jⁱ⁺¹) V(p_jⁱ) = VT(A_jⁱ⁺¹) + ---------- w_j

Notes:

The virtual time at the moment that packet p_jⁱ⁺¹ arrives is equal to VT(A_jⁱ⁺¹)
The packet p_jⁱ⁺¹ received service immediately at virtual time VT(A_jⁱ⁺¹)

The amount of virtual time needed to transmit p_jⁱ⁺¹ is equal to:

len( p_jⁱ⁺¹) ------------- w_j

Therefore, the virtual time when packet p_jⁱ⁺¹ finishes transmission is equal to:

len( p_jⁱ⁺¹) VT(A_jⁱ⁺¹) + ------------- w_j

Therefore, the time stamp (= virtual time when p_jⁱ⁺¹ finishes transmission) is equal to:

len( p_jⁱ⁺¹) V(p_jⁱ⁺¹) = VT(A_jⁱ⁺¹) + ------------- ....... (1) w_j

Case 2: p_jⁱ has not been transmitted when p_jⁱ⁺¹ arrives

Graphically depicted:

Notes:

Packet p_jⁱ⁺¹ starts transmission immediately after packet p_jⁱ has finished transmission.
The virtual time at the moment that packet p_jⁱ finishes transmission = V(p_jⁱ)

The amount of virtual time needed to transmit p_jⁱ⁺¹ is equal to:

len( p_jⁱ⁺¹) ------------- w_j

Therefore, the virtual time when packet p_jⁱ⁺¹ finishes transmission is equal to:

len( p_jⁱ⁺¹) V(p_jⁱ) + ------------- w_j

Therefore, the time stamp (= virtual time when p_jⁱ⁺¹ finishes transmission) is equal to:

len( p_jⁱ⁺¹) V(p_jⁱ⁺¹) = V(p_jⁱ) + ------------- ....... (2) w_j

The WFQ time stamp assignment algorithm:

len( p_jⁱ⁺¹) V(p_jⁱ⁺¹) = max( V(A_jⁱ⁺¹), V(p_jⁱ) ) + ------------- ............ (3) w_j

The Speed of the Virtual Clock (= virtual time function VT(t))

We will use examples to illustrate how the speed of the virtual clock VT(t) is determined so that:

Example 1:

3 flows:
Packet arrivals at time t = 0:

Virtual packet lengths:

virtual len(p₁¹) = 3
virtual len(p₂¹) = 3
virtual len(p₃¹) = 3

Meaning:

It takes 3 virtual sec to transmit p₁¹
It takes 3 virtual sec to transmit p₂¹
It takes 3 virtual sec to transmit p₃¹

Note:

The packets p₁¹, p₂¹ and p₃¹ can progress at the same time !!!
I.e.: each packet will take 3 virtual sec to transmit
But: the packets need not be transmitted consecutively
(They can be transmitted concurrently !!!)

The packets are serviced as follows:

p₁¹ finishes, virtual len(p₁¹) = 3 p₂¹ finishes, virtual len(p₂¹) = 3 p₃¹ finishes, virtual len(p₃¹) = 3 V(3)=3 |-----------------------------------|---------------> virtual time |-----------+-----------+-----------+---------------> real time t=0 t=1 t=2 t=3

Notes:

It takes 3 virtual sec to transmit p₁¹, p₂¹ and p₃¹
p₁¹, p₂¹ and p₃¹ all started transmission at t = 0 (real time)
p₁¹, p₂¹ and p₃¹ all finished transmission at t = 3 (real time)
Therefore:

Conclusion:

When all flows are backlogged:

t VT(t) = --- 1

Example 2:

3 flows:
Packet arrivals at time t = 0:
Virtual packet lengths:

The packets are serviced as follows:

p₁¹ finishes, virtual len(p₁¹) = 3 p₂¹ finishes, virtual len(p₂¹) = 3 V(2)=3 |-----------------------|---------------------------> virtual time |-----------+-----------+-----------+---------------> real time t=0 t=1 t=2 t=3

Notes:

It takes 3 virtual sec to transmit p₁¹, and p₂¹
p₁¹, and p₂¹ all started transmission at t = 0 (real time)
p₁¹, and p₂¹ all finished transmission at t = 2 (real time)
Therefore:

Conclusion:

When flows 1 and 2 are backlogged:

t VT(t) = ----- (2/3)

Example 3:

3 flows:
Packet arrivals at time t = 0:
Virtual packet lengths:

The packets are serviced as follows:

p₁¹ finishes, virtual len(p₁¹) = 3 V(1)=3 |-----------|---------------------------------------> virtual time |-----------+-----------+-----------+---------------> real time t=0 t=1 t=2 t=3

Notes:

It takes 3 virtual sec to transmit p₁¹
p₁¹ "all" started transmission at t = 0 (real time)
p₁¹ "all" finished transmission at t = 1 (real time)
Therefore:

Conclusion:

When flows 1 are backlogged:

t VT(t) = ----- (1/3)

Example 4:

At time 0: p₁¹ and p₂¹ arrives.
len(p₁¹) = 1 and len(p₂²) = 1
At time 1: p₃¹ arrives.
len(p₃¹) = 1
Fact: Virtual length of each packet is still equal to 1/w = 3
Hence, it will take still 3 virtual time units to process each packet.

The packets are services as follows:

t=0 t=1 t=2 2.5 t=3 | | | | | V V V V V |-----------+-----------+-----+-----+---------------> real time |<--------->|<--------------->|<--->| 1/2 P1+P2 1/2 P1+P2+P3 1/2 P3 ^ ^ ^ |<--------->| | | 1/2 P1 | | | 1/2 P1 P1 fin | VT=3/2 VT=3 | =1.5 | | | |<--------------->| | | 1/2 P1 | | | | | P3 starts P3 fin VT=1.5+3=4.5 |<--------------------->| P3: 3 virtual sec |-----------+-----------+-----+-----+---------------> Virtual time 0 1.5 3 4.5 |<--------->|<--------------->|<--->| vt = 1.5 t vt = 1 * t vt=3t = t/(2/3) = t/(3/3) =t/(1/3)

Notes:

During interval (0, 1), packets P1 (of flow 1) and P2 (of flow 2) receive equal service - so half of each packets P1 and P2 are transmitted.
The virtual packet length processed is 1.5, so the virtual time at real time t = 1 is equal to vt = 1.5 - virtual clock rate is 1.5 units/sec
During interval (1, 2.5), packets P1, P2 and P3 receive equal service - so half pf each packets P1 and P2 are transmitted.
The virtual packet length processed is 1.5, so the virtual time at real time t = 2.5 is equal to vt = 1.5 + 1.5 = 3 - virtual clock rate is 1 units/sec
During interval (2.5, 3), the last half of packet P3 is transmitted.
The virtual packet length processed is 1.5, so the virtual time at real time t = 3 is equal to vt = 3+1.5 = 4.5 - virtual clock rate is 3 units/sec

Conclusion from these examples:

Virtual time function of WFQ:

t VT(t) = ------ S(t) where ---- \ 1 S(t) = > --- / w_j ---- All backlogged flows j at time real time t in a FFS system

Simulating the FFS using a digital computer

Implementation difficulty of the FFS scheduler:

In the FFS system, we have to continuously compute on the progress of the packets
Digital computers can only make discrete time computations
Therefore:

Contribution by Parekh:

Fact:
When can a flow change its state between non-backlogged and backlogged:
Therefore: the speed of the virtual clock will only change at these moments:

Parekh's observations made it possible to examine a finite number of moments in time and compute the progress of the FFS server

The WFQ scheduling algorithm

The implementation of an simulation of the FFS scheduler require us to monitor these types of events :

e₁ = the event that a packet arrives

e₂ = the event that a packet finishes in the FFS server

Because: If a packet finishes transmission in the FFS server causes some flow to become not backlogged (i.e., last packet transmitted), then the rate of the virtual clock will change

The WFQ scheduler will use the FFS simulation to schedule the next packet for transmission

So we must also monitor these types of events in real time:

e₃ = the event that a packet finishes transmission in real time

Because:
- The WFQ scheduler transmits the packet atomically
- When a packet finishes transmission in real time, the next packet (with the smaller virtual finish time) must be selected to start transmission

Definitions:

t(e₁) = the earliest real time of a packet arrival event
t(e₂) = the earliest real time of a packet departure event in the FFS server
t(e₃) = the earliest real time of a packet departure event in the WFQ server

Notation:

t_next

min(

t(e₁)

t(e₂)

t(e₃)

t_next = the "next event time"
- the next real time moment that WFQ scheduler must perform some action

Actions performed by the WFQ scheduler for a specific event:

When the next packet p_jⁱ⁺¹ arrives:

Notations:

Let A(p_jⁱ⁺¹) = the arrival time (real time) of the packet p_jⁱ⁺¹
Let p_jⁱ = the last packet of flow j that arrived to the WFQ scheduler
Let V(p_jⁱ) = the time stamp assigned to the packet p_jⁱ
= the virtual time that packet p_jⁱ finishes transmission !!

Assign a time stamp (virtual finish time) to packet p_jⁱ⁺¹ :

len( p_jⁱ⁺¹) V(p_jⁱ⁺¹) = max( V(A_jⁱ⁺¹), V(p_jⁱ) ) + ------------- w_j

If the WFQ scheduler is idle, then:

Re-compute the speed of the virtual clock:

---- \ 1 Speed of virtual clock = > --- / w_j ---- All active flows j at time real time t in a FFS system

Re-compute:

t(e₂) = the earliest real time of a packet departure event in the FFS server
(using the updated speed of the virtual clock).

When the (simulated) FFS server has finished transmitting a packet:

Re-compute the speed of the virtual clock:

---- \ 1 Speed of virtual clock = > --- / w_j ---- All active flows j at time real time t in a FFS system

Re-compute:

t(e₂) = the earliest real time of a packet departure event in the FFS server
(using the updated speed of the virtual clock).

When the WFQ server has finished transmitting a packet(atomically):

Determine the packet p where V(p) = minimum virtual finish time of all packets in the queue
Transmit packet p
Re-compute:

WFQ Psuedo code

Variable utilization:

t = the current real time (clock)
vt = the current virtual time (clock)
prev_t = the last event time (in real time)
prev_vt = the last event time (in virtual time)
S = the speed of the virtual time clock
PacketQ = the queue of packets in the WFQ scheduler
The packets are ordered by their (virtual) time stamp
The first packet in PacketQ is being transmitted
PacketQ.remainingTransmitTime = the remaining (real) time needed to transmit the first packet in PacketQ
lastTimeStamp[flowID] = the last (virtual) time stamp assigned to a packet of flow flowID
RemainingVirLength[j] = the remaining (virtual) packet length of the earliest packet of flow j (whcih is in service at the FFS server)

Initialization:

prev_t = t = 0; // Clock prev_vt = vt = 0; // Virtual clcok for ( j = 0; j < nFlows; j++ ) { lastTimeStamp[j] = 0; RemainingVirLength[j] = 0; }

WFQ scheduling algorithm: (there are 2 server codes (FFS and WFQ) in the algorithm !)

/* -------------------------------------------------------- Help function: Computing the rate of the virtual clock -------------------------------------------------------- */ double compute_VT_Rate() { double r = 0.0; for (int i = 0; i < nFlows; i++) if ( Flow[i].size() > 0 ) r += w[i]; if ( r > 0 ) return(1/r); else return(0.0); }
/* -------------------------------------------------------- Help function: minimum of 3 values -------------------------------------------------------- */ double min3(double t1, double t2, double t3) { if ( t1 ≤ t2 && t1 ≤ t3 ) return t1; else if ( t2 ≤ t1 && t2 ≤ t3 ) return t2; else return t3; }
while ( true ) { /* --------------------------------- Record the previous action time --------------------------------- */ prev_t = t; prev_vt = vt; /* =========================================== Compute the next action time (real time) =========================================== */ /* ----------------------------------------- Get t(e₁) = next packet arrival time ----------------------------------------- */ Let t_arrival = arrival time of next packet; /* ------------------------------------------------------- Compute t(e₂) = next packet finish time in FFS server ------------------------------------------------------- */ vt_rate = compute_VT_Rate(); for ( i = 0; i < nFlows; i++ ) { if ( Flow[i].get(0).RemainingVirlength > 0 ) t_VirtualFinTime[i] = Flow[i].get(0).RemainingVirlength/vt_rate; } t_FFS_finish = min( t_VirtualFinTime[i = 0..(nFlows-1)] ); /* ------------------------------------------------------- Compute t(e₃) = next packet finish time in WFQ server ------------------------------------------------------- */ if ( PacketQ != null ) t_departure = t + PacketQ.remainingTransmitTime; else t_departure = MAX_DOUBLE; /* ============================================================ Update progress in the FFS and the WFS ============================================================ */ /* ---------------------------------- Advance (real time) clock ---------------------------------- */ t = min3(t_arrival, t_departure, t_FFS_finish) ); vt = prev_vt + vt_rate * (t - prev_t); /* -------------------------------------- Update progress (from prev_t --> t) -------------------------------------- */ for ( i = 0; i < nFlows; i++ ) { if ( Flow[i].get(0).RemainingVirlength > 0 ) Flow[i].get(0).RemainingVirlength = Flow[i].get(0).RemainingVirlength - vt_rate*(t-prev_t); } if ( PacketQ != null ) { PacketQ.remainingTransitTime = PacketQ.remainingTransitTime - (t - prev_t); } /* ---------------------------------- Process event (the WFQ algorithm) ---------------------------------- */ if ( t_arrival == t ) { /* -------------------------- Handle an arrival event -------------------------- */ packet = new Packet(); flowID = flow ID of arriving packet' packet.packetLen = length of packet; packet.remainingVirLength = packetLen/w[flowID]; packet.TimeStamp = max( vt, lastTimeStamp[flowID]) + packet.remainingTransitTime; lastTimeStamp[flowID] = packet.TimeStamp; insertOrdered( packet, PacketQ ); insertFIFO( packet, Flow[i] ); } else if ( t_FFS_finish == t ) { /* ------------------------------------- Handle a departure in the FFS server ------------------------------------- */ for ( i = 0; i < nFlows; i++ ) { if ( Flow[i].size() > 0 ) { if ( Flow[i].get(0).RemainingVirlength < 0.00001 ) { Flow[i].remove(0); } } } } else { /* ------------------------------------ Handle a departure in the WFQ server ------------------------------------ */ PacketQ = PacketQ.deleteHead(); if ( PacketQ != null ) { PacketQ.remainingTransmitTime = PacketQ.packetLen; } } }

WFQ Scheduling - Example

Consider the Example 4 from above:

At time 0: p₁¹ and p₂¹ arrives.
len(p₁¹) = 1 and len(p₂²) = 1
At time 1: p₃¹ arrives.
len(p₃¹) = 1
Fact: Virtual length of each packet is still equal to 1/w = 3
Hence, it will take still 3 virtual time units to process each packet.

Worked out example:

Initialization: prev_t = 0 prev_vt = 0 t = 0 vt = 0 FFS server WFQ server ---------- ----------- 1: PacketQ: 2: 3: vt_rate = ?
Event 1: t = 0 p₁¹ arrives prev_t = 0 prev_vt = 0 t = 0 vt = 0 (No progress, because t == prev_t) FFS server WFQ server ---------- ----------- 1: p₁¹(packetLen=1 PacketQ: p₁¹(remaingTransmitTime=1) remVirLenghth=3 TimeStamp=3) 2: --- 3: --- vt_rate = 3/1 ===================== t_arrival = 0 t_FFS_finish = min( (3.0/3.0) ) = 1.0 t_departure = 1 ======================
Event 2: t = 0 p₂¹ arrives prev_t = 0 prev_vt = 0 t = 0 vt = 0 (No progress, because t == prev_t) FFS server WFQ server ---------- ----------- 1: p₁¹(packetLen=1 PacketQ: p₁¹(remaingTransmitTime=1) p₂¹ remVirLenghth=3 TimeStamp=3) 2: p₂¹(packetLen=1 remVirLenghth=3 TimeStamp=3) 3: --- vt_rate = 3/2 ===================== t_arrival = 1 t_FFS_finish = min( (3.0/1.5), (3.0/1.5) ) = 1.5 t_departure = 1 ======================
Event 3: t = 1 p₃¹ arrives prev_t = 0 prev_vt = 0 t = 1 vt = 1.5 FFS server WFQ server ---------- ----------- 1: p₁¹(packetLen=1 PacketQ: p₁¹(remaingTransmitTime=0) p₂¹ p₃¹ remVirLenghth=1.5 TimeStamp=3) 2: p₂¹(packetLen=1 remVirLenghth=1.5 TimeStamp=3) 3: p₃¹(packetLen=1 remVirLenghth=3 TimeStamp=4.5) = [1.5 + 3] vt_rate = 3/3 ===================== t_arrival = ? t_FFS_finish = min( (1.5/1.0), (1.5/1.0), 3.0/1.0 ) = 1.5 t_departure = 0 ======================
Event 4: t = 1 p₁¹ finishes in WFQ server prev_t = 1 prev_vt = 1 t = 1 vt = 1.5 (No progress, because t == prev_t) FFS server WFQ server ---------- ----------- 1: p₁¹(packetLen=1 PacketQ: p₂¹(remaingTransmitTime=1) p₃¹ remVirLenghth=1.5 TimeStamp=3) 2: p₂¹(packetLen=1 remVirLenghth=1.5 TimeStamp=3) 3: p₃¹(packetLen=1 remVirLenghth=3 TimeStamp=4.5) = [1.5 + 3] vt_rate = 3/3 ===================== t_arrival = ? t_FFS_finish = min( (1.5/1.0), (1.5/1.0), 3.0/1.0 ) = 1.5 t_departure = 1 ======================
Event 5: t = 2 p₂¹ finishes in WFQ server prev_t = 1 prev_vt = 1 t = 2 vt = 2.5 FFS server WFQ server ---------- ----------- 1: p₁¹(packetLen=1 PacketQ: p₃¹(remaingTransmitTime=1) remVirLenghth=0.5 TimeStamp=3) 2: p₂¹(packetLen=1 remVirLenghth=0.5 TimeStamp=3) 3: p₃¹(packetLen=1 remVirLenghth=2 TimeStamp=4.5) vt_rate = 3/3 ===================== t_arrival = ? t_FFS_finish = min( (0.5/1.0), (0.5/1.0), 2.0/1.0 ) = 0.5 t_departure = 1 ======================
Event 6: t = 2.5 p₁¹ finishes in FFS server prev_t = 2 prev_vt = 2 t = 2.5 vt = 3 FFS server WFQ server ---------- ----------- 1: ~~p₁¹(packetLen=1~~ PacketQ: p₃¹(remaingTransmitTime=0.5) ~~remVirLenghth=0.0~~ ~~TimeStamp=3)~~ 2: p₂¹(packetLen=1 remVirLenghth=0.0 TimeStamp=3) 3: p₃¹(packetLen=1 remVirLenghth=1.5 TimeStamp=4.5) vt_rate = 3/2 ===================== t_arrival = ? t_FFS_finish = min( (0.0/1.5), 1.5/1.5 ) = 0.0 t_departure = 0.5 ======================
Event 7: t = 2.5 p₂¹ finishes in FFS server prev_t = 2.5 prev_vt = 3 t = 2.5 vt = 3 (No progress, because t == prev_t) FFS server WFQ server ---------- ----------- 1: ~~p₁¹(packetLen=1~~ PacketQ: p₃¹(remaingTransmitTime=0.5) ~~remVirLenghth=0.0~~ ~~TimeStamp=3)~~ 2: ~~p₂¹(packetLen=1~~ ~~remVirLenghth=0.0~~ ~~TimeStamp=3)~~ 3: p₃¹(packetLen=1 remVirLenghth=1.5 TimeStamp=4.5) vt_rate = 3/1 ===================== t_arrival = ? t_FFS_finish = min( 1.5/3.0 ) = 0.5 t_departure = 0.5 ======================
Event 8: t = 3 p₃¹ finishes in FFS server prev_t = 2.5 prev_vt = 3 t = 3 vt = 4.5 (= 3 + 0.5×3) FFS server WFQ server ---------- ----------- 1: ~~p₁¹(packetLen=1~~ PacketQ: p₃¹(remaingTransmitTime=0.0) ~~remVirLenghth=0.0~~ ~~TimeStamp=3)~~ 2: ~~p₂¹(packetLen=1~~ ~~remVirLenghth=0.0~~ ~~TimeStamp=3)~~ 3: ~~p₃¹(packetLen=1~~ ~~remVirLenghth=0.0~~ ~~TimeStamp=4.5)~~ vt_rate = 3/1 ===================== t_arrival = ? t_FFS_finish = min( ? ) = ? t_departure = 0.0 ======================
Event 8: t = 3 p₃¹ finishes in WFQ server prev_t = 3 prev_vt = 4.5 t = 3 vt = 4.5 (No progress, because t == prev_t) FFS server WFQ server ---------- ----------- 1: ~~p₁¹(packetLen=1~~ PacketQ: --- ~~remVirLenghth=0.0~~ ~~TimeStamp=3)~~ 2: ~~p₂¹(packetLen=1~~ ~~remVirLenghth=0.0~~ ~~TimeStamp=3)~~ 3: ~~p₃¹(packetLen=1~~ ~~remVirLenghth=0.0~~ ~~TimeStamp=4.5)~~ vt_rate = 3/1 ===================== t_arrival = ? t_FFS_finish = min( ? ) = ? t_departure = 0.0 ======================

Done

The virtual clock is kept precisely !!!

Example Program: (Demo above code)
- Prog file: click here
  (I need to clean up the code for this implementation... It works, but the code is ugly)
Sample outputs:
Sample outputs:

How well does WFQ approximate FFS ?

Theorem

Let p be an arbitrary packet and let t^fin_p be the finish time of packet p in the Fluid Flow Server
Then finish time of packet p in the WFQ server at less than or equal to:
where t_MAX is the time needed to transmit the largest packet in the system

BTW, that's the best that you can do, because if your packet arrives just one nano-second behind the largest packet in the system, you will have to wait until that packet is sent before your packet can be transmitted.
In this worst case scenario, your service will be t_MAX behind schedule...
