Parameter passing mechanism: pass-by-value

Introduction
- In the last webpage, we discussed how to pass information to a method
- I have kept it (deliberately) simple by using constant values as parameters:
- In this webpage, we will discuss how to pass information stored in variables to a method.
  Specifically, we will study the pass-by-value mechanism
Example: passing information stored in variables
- Consider the following program:
- Question to ponder:
  There are quite a few ways to allow (enable) you to accomplish this "passing"
  The possible answers ranges from simple to pretty weird

Terminology: formal parameters and actual parameters

Definitions:

Formal parameter = a parameter variable
Actual parameter = a variable whose value is to be passed to some formal parameter

Illustrated example:

Explanation:

The parameter variables a and b in the definition of the ToolBox.min method are formal parameters
The variables x and y used in the method invocation ToolBox.min(x, y) are actual parameters

Parameter passing mechanisms

Definition:

Parameter passing mechanism = agreement between the calling method and the called method on how a parameter is passed between them
Important note:

Most commonly used parameter passing mechanisms:

Pass-by-value
This is the most obvious way to pass information...
Example:

Pass-by-reference

The calling method passes/copies the reference (location or address) of a actual parameter variable into the formal parameter variable.

This is a less obvious but more powerful way to pass information...

Example:

if you want to give you phone number of your home to someone, you give him/her the address of your home (that is the reference in the formal parameter variable)
He/she can then go to the house (and go inside !) and find the phone number !!!

Terminology: reference
- Terminology:
The parameter passing mechanism used in Java
- The Java programming language uses only the pass-by-value mechanism.
- In the remainder of this webpage, we will study the details of the pass-by-value mechanism.
  In the next webpage, we will study the pass-by-reference mechanism.

The Pass-by-value mechanism - the agreement

Recall:

The agreement used in the Pass-by-value mechanism:

For the calling method:

The calling method creates the parameter variables for the called method, .... and
The calling method copies the value of the actual parameter into the formal parameter

For the called method:

The Pass-by-value mechanism - an example

Example program:

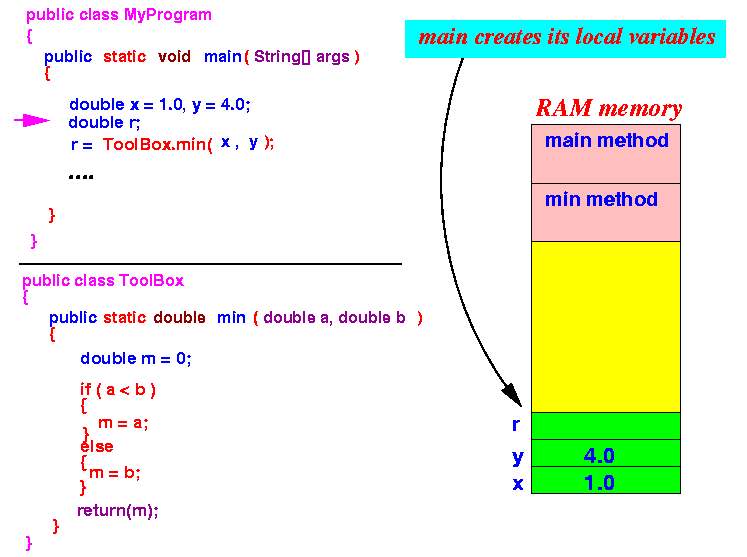

When main starts running, it will first create its local variables:

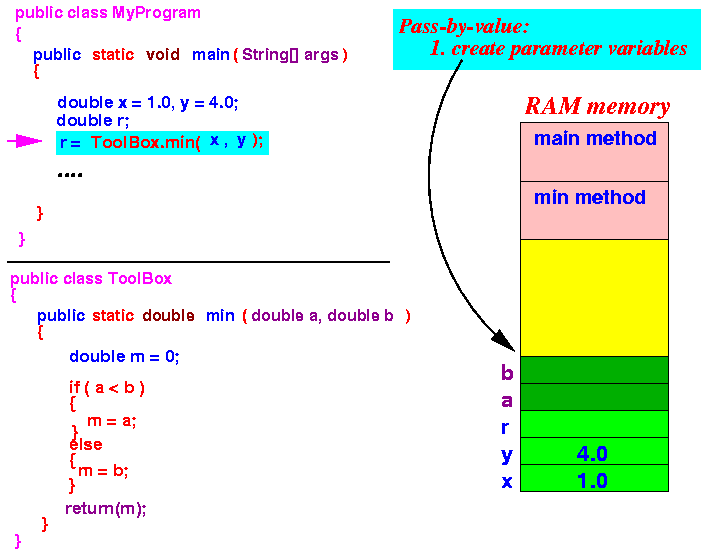

When execution reaches the method call ToolBox.min(x,y), the Pass-by-value mechanism first creates the parameter variables:
Then the Pass-by-value mechanism copies the value of the actual parameter to the corresponding formal parameter:

The method invocation mechanism is completed as usually with the following steps:

Save the return address on the stack:
Jump to the called method:
When the min method executes, it will create its local variable m:

Notice how the called method uses the parameter variables:

A quiz on the Pass-by-value mechanism

Consider the following program:

Questions:

What value is printed by the statement System.out.println(x); ?
What value is printed by the statement System.out.println(y); ?
What value is printed by the statement System.out.println(r); ?

Example Program: (Demo above code)
- Prog file: click here
- Prog file: click here
How to run the program:
Output of the program:
Did you understand why the update statements "a = a + 1" and "b = b + 2" did not update the actual parameters x and y ???

The quiz explained

Notice the similarities between the ToolBox.min and the ToolBox.fun methods:

public static double min ( double a, double b ) { double m = 0; if ( a < b ) { m = a; } else { m = b; } return(m); }

public static double fun ( double a, double b ) { double m = 0; a = a + 1; b = b + 2; m = a + b; return(m); }

Both methods have 2 parameter variables and 1 local variable

I have constructed the quiz in such a way that I can re-use the diagrams from the Pass-by-value example above.

So according to the Pass-by-value example above, when the ToolBox.min method starts running, the following variables have been created on the System Stack:
Notice that:
are different variables (they occupy different memory cells !)
The assignment statements:
will change the values of the parameter variables:

Notice that:

The values in the actual parameters (x and y) are unchanged !!!

That's why the statements

System.out.println(x); ---> prints 1.0 System.out.println(y); ---> prints 4.0

The quiz with an additional twist...

Now, consider the following program:

We use the same names for actual and formal parameters !!!

Questions:

What value is printed by the statement System.out.println(a); ?
What value is printed by the statement System.out.println(b); ?
What value is printed by the statement System.out.println(r); ?

Example Program: (Demo above code)
- Prog file: click here
- Prog file: click here
How to run the program:
Output of the program:
Did you understand why the update statements "a = a + 1" and "b = b + 2" (that updates the formal parameters) did not update the actual parameters a and b ???

The quiz explained

Recall that:
In other words:
are different variables

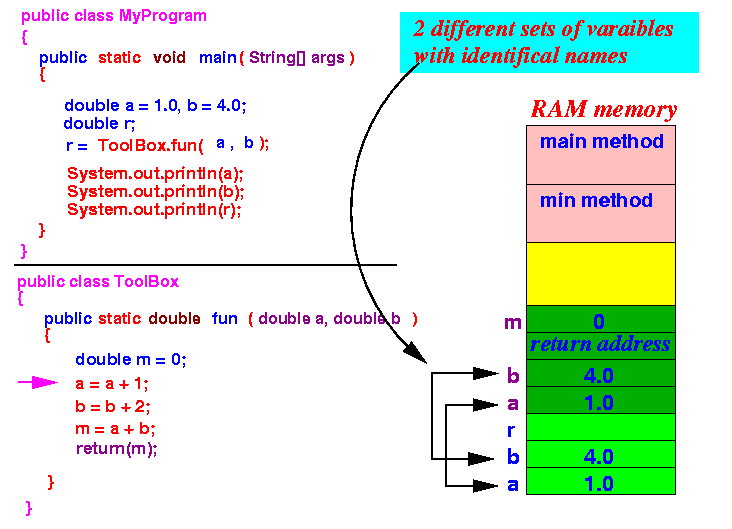

The following diagram shows the fact that there are 2 different variables with the same name created created on the System Stack:

Notice that:

The blue colored variables named a and b are inside the scope of the main method and
The magenta colored variables named a and b are inside the scope of the fun method

are different variables --- it's possible because of the scopes are non-overlapping (furthermore, they use different memory cells !)

The assignment statements:
will change the values of the parameter variables:

Notice that:

The values in the actual parameters (a and b) are unchanged !!!

That's why the statements

System.out.println(a); ---> prints 1.0 System.out.println(b); ---> prints 4.0
